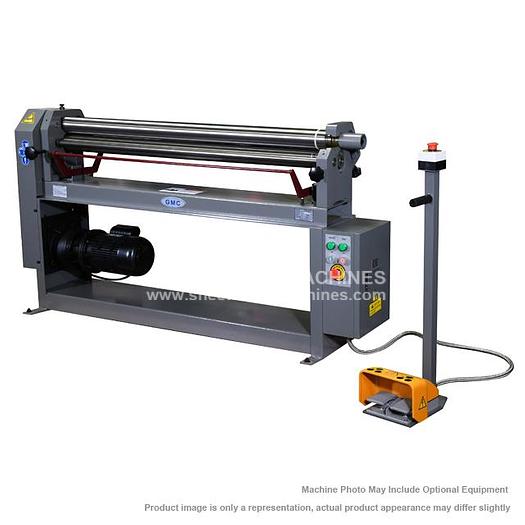

GMC Powered Slip Roll (1 Phase) PSR-5016-1PH
GMC Powered Slip Roll (1 Phase) PSR-5016-1PH
$3,950 FREE SHIPPING!
Description
Please note: many products ship straight from manufacturer 4' (50”) x 16 ga. GMC Powered Slip Roll (1 Phase)
- ISO 9001 certified
- Heavy welded all steel construction for maximum rigidity
- Silence electrical motor
- Quick release top roller
- Two rolls are driven
- Precision ground rollers
- 1” roll opening
- All three rolls are made of high grade alloy steel, hardened up to 50 HRC
- All rolls run forward and reverse
- Safety type removable foot pedal
- Overload protection and disconnect switch
STANDARD ITEMS:
- Electrical cabinet
- Removable safety foot pedal
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
| Manufacturer | GMC Machine Tools |
| Model | PSR-5016-1PH |
| Condition | New |
| Stock Number | PSR-5016-1PH |
| Rolling Capacity: Mild steel | 50” x 16 Ga. |
| Rolling Capacity: Stainless Steel | 50” x 20 Ga. |
| Min. thickness capacity | 50” x 26 Ga. |
| Rolls size, length x diameter | 50” x 3” |
| Min. roll bending diameter capacity | 3-1/2" |
| Roll Speed | 201” / min |
| Rolls opening | 1/4" |
| (3) Grooves size | 5/16”, 3/8”, 1/2” |
| Main Motor | 1-1/2 HP, 220V, 1PH |
| Machine Dimensions | 68" x 28" x 47" |
| Net Weight | 828 lbs |
