BIRMINGHAM Power Slip Roll X-5016E-C
BIRMINGHAM Power Slip Roll X-5016E-C
Contact us for price
Description

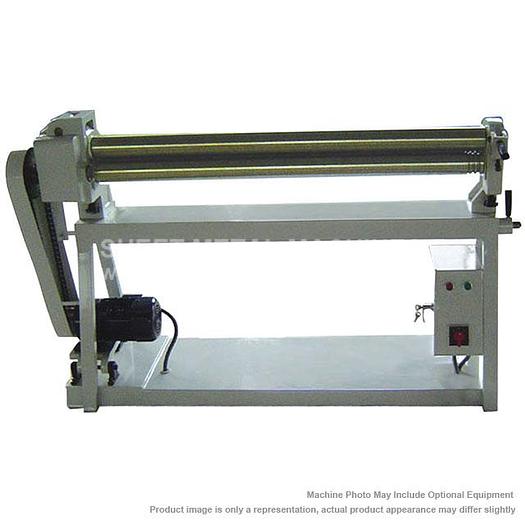

Please note: many products ship straight from manufacturer BIRMINGHAM 50" x 16 ga. Power Slip Roll X-5016E-C
- All rolls are made of polished, turned, and ground high grade carbon steel
- Gear-driven rolls
- Rigid construction for long life and precision operation.
- Front mounted handle to life upper toll for easy workpiece removal.
- Standard three wire grooves.
- Removable foot pedal control
Specifications and design are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
| Manufacturer | Birmingham |
| Model | X-5016E-C |
| Condition | New |
| Stock Number | X-5016E-C |
| Forming Width | 50" |
| Capacity Mild Steel | 16 ga. |
| Diameter of Roll | 3" |
| 3 Wire Grooves | 5/16", 3/8", 1/2" |
| Forming Radius Min. | 1-1/2" |
| Roll Speed | 16 RPM |
| Motor | 1 HP, 3Ø |
| Overall Dimensions (L x W x H) | 67" x 26" x 45" |
| Net Weight (lbs.) | 780 |
