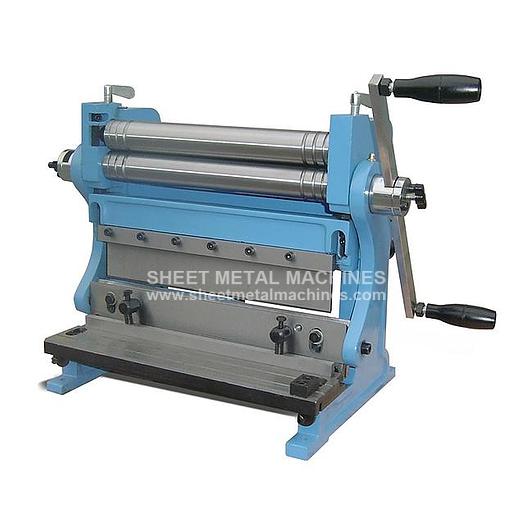

Please note: many products ship straight from manufacturer BAILEIGH 12" x 20 ga. Shear Brake Roll SBR-1220 The SBR-1220 is a manual shear, press brake, and slip roll all in one. Great for hobbyists, maintenance, and R&D shops, this combination machine saves space.

  • Maximum capacity of 20 gauge mild steel for all functions.
  • Handles material up to 12” wide, just right for those small jobs.
  • Slip roll portion on top has hardened and polished shafts for long life.
  • Minimum rolling diameter of 1.54”.
  • 3 grooves in the roll let you form wire perfectly.
  • Adjustable fingers on the top beam can make boxes of varying sizes with.
  • Press brake portion in the middle gives you a maximum bend angle of 90° for perfect corners.
  • You can tighten or loosen the frame and adjust the camber of the tooling for consistent bending across the material.
  • Shear station uses hardened, reversible blades that stay sharp over a long lifetime of us.
  • Spring-loaded hold-down will save a time and waste when you’re shearing.
  • Large, double-sided handles allow 2 operators to apply force.
  • You get one full up-down cycle out of each tool with one 360° turn of the handle.
  • Manual back gauge ensures repeatability on shear and brake projects.
  • Weighs 125 lbs. with a powerful steel frame that maintains accuracy.
  • Covered by a 1-year parts warranty.
  • Comes with lifetime technical support by phone from our team of knowledgeable reps.


ManufacturerBaileigh Industrial
Stock NumberSBR-1220
Max. Material Thickness (Stainless Steel).019"
Rolling Capacity20 ga. (.036”)
Shear Capacity20 ga.
Min. Rolling Dia.1.54"
Bed Width12"
Bending Capacity20 ga. (.036”)
Maximum Bend Angle90°
Finger Lengths1", 2@2-1/8", 3-1/8", 4-1/8"
Finger Thickness3/16"
Shipping Dimensions (LxWxH)20" x 13" x 17"
Shipping Weight125 lbs.
