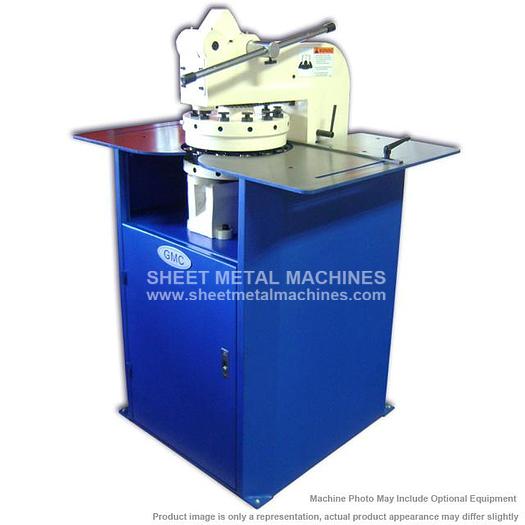

GMC Super Turret Punch TP-12

GMC Super Turret Punch TP-12

$5,850 FREE SHIPPING!

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer GMC Super Turret Punch TP-12 ISO 9001 certified Solid and strong steel C frame 12 turret stations It comes with standard round punch & die sizes from 3/16”, 1/4”, 5/16”, 3/8”, 1/2”, 9/16”, 5/8”, 3/4”, 7/8”, 1”, 1-1/8”, 1-1/4” It comes with a standard layout 01 # LOUT with (12) 1-1/4” diameter holes on bottom base Punches & dies up to 2-1/4”, needs to purchase LAYOUT 02 & LAYOUT 03 on bottom base Deluxe stand with table Hand operated Stop bar with inch /mm scale OPTIONAL ITEMS - CALL FOR PRICE: Any size of round punch and die set Any size of punch & die set for square, rectangular, oval, shallow extrusions, or other special shaped holes LOUT-02 Layout 02: 8 pcs 1-1/4”, 2 pcs1-1/2”, 1 pc-2” & 1 pc 2-1/4” LOUT-03 Layout 03: 6pcs 1-1/4”, 2pcs 1-1/2”, 2 pcs 2” & 2pcs 2-1/4”

Specifications

ManufacturerGMC Machine Tools
ModelTP-12
ConditionNew
Stock NumberTP-12
Capacity pressure7 tons (15,500 lbs)
Number of stations12 Stations
Throat depth12"
Clearance between punches & dies7/16"
Stroke of ram11/16"
Max. punch diameter with optional LAYOUT 02 & LAYOUT 032-1/4"
Max. hole in 1/4” thick mild steel3/8” diameter
Max. hole in 3/16” thick mild steel1/2” diameter
Max. hole in 10 Ga. thick mild steel1-1/4” diameter
Max. hole in 3/32” thick mild steel1-1/2” diameter
Max. hole in 1/16” thick mild steel2-1/4” diameter
Machine dimensions, LWH32” x 30” x 55”
Machine Weight:930 lbs.
