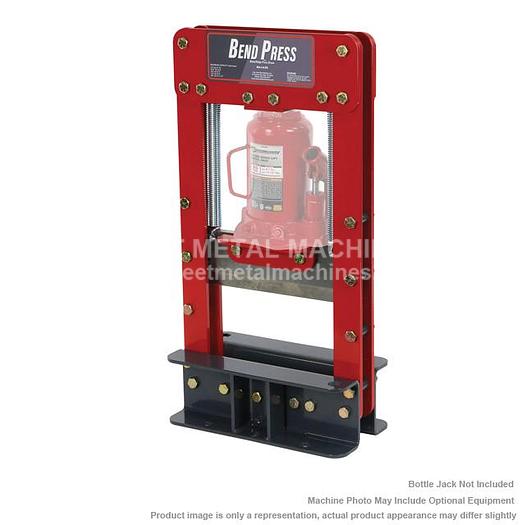

Please note: many products ship straight from manufacturer BEND PRESS 10" x 20 Ton Benchtop Press Brake BP1020 Made in the USA

This compact benchtop press brake is the perfect solution for the fabricator needing to bend small sections of sheet metal and plate steel. Utilizing a common 20 ton bottle jack, this press requires no outside power source or specialized pumps. it is ideal for making suspension and body support brackets. With its relatively small footprint, this press is also a perfect fit for those with limited working space. And with the optional 4-sided V-die made from 4140 tool steel, tight radius bends can be made in lighter weight materials. Made in the USA!

Powered by standard 20 ton bottle jack (not included)

Heavy 1/4" and 3/8" plate steel construction

Powder coated frame

1/2" thick tool steel punch

Pre-drilled bench mounting holes

Self contained spring return

(jack not included)


  • PART #BP1020-4W: 4-Way Die $219.95


ManufacturerBend Press
Stock NumberBP1020
Capacity20 Tons Maximum
1/4" mild steel10"
5/16" mild steel9"
3/8" mild steel8"
1/2" mild steel4"
5/8" mild steel2"
Maximum bend angle90°
Minimum distance between 45º bends2"
Minimum distance from edge of material2"
Dimensions28" x 14" x 7.5"
Weight84 lbs.
