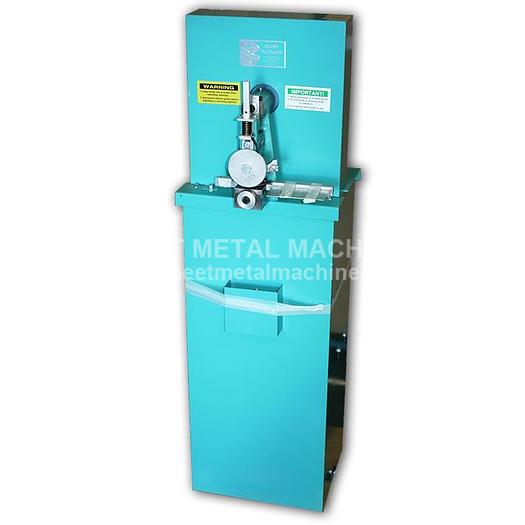

RUOFF NOTCHER 16-20 ga. Automatic Power Notcher

  • Notcher with either style punch & die (#1 or #3) with Non-Marring Feed Wheel (optional)
  • Automatic Power Notcher for the Heating, Air Conditioning and Sign Industry
  • Fast, Simple, Flexible
  • The Ruoff Notcher is a punch press with an adjustable automatic feed. It is precision designed for punching various shapes, along the edge of sheet material.
  • Sheet steel, galvanized iron, aluminum, plastics, cardboard, or any sheet material that can be punched, can be handled by the Ruoff Notcher.
  • Each Ruoff Notcher is fully guaranteed for 90 days after date of purchase. Shipping is immediate. The Ruoff Notcher is easily installed in less than five minutes.
  • Compact self-contained unit provides safety and convenient trouble-free service.
  • Standard punch and dies provide either 15° notch or a 3/32" slot. Other patterns are available. The punch and die can be sharpened several times.
  • TO MEET SPECIAL REQUIREMENTS: The need for notching heavier gauges, wider spacing, or meeting other specific conditions beyond the scope of the standard Ruoff Notcher can often be met by minor modifications. Inquiries are invited regarding these special needs.


  • PART #1 "V" Punch & Die Unit
  • PART #3 Slot Punch & Die Unit
  • PART #4 Slot & Hole Punch & Die Unit
  • PART #5 Hole Punch & Die Unit
  • PART #2 Slitting Punch & Die
  • PART #6 Specials (Prices available upon request)


GaugeUp to 16 gauge mild steel - 20 gauge stainless Other materials in proportion to shear strength (.060 max. thickness)
SpeedFrom 20 feet per minute (240 punches per minute) up
Electrical115/230 volts a-c, 11/5.6 amps., 3/4 h.p.
AdjustmentsCenters of notches are adjustable up to 1-1/8" max. Depth of notch is adjustable up to 7/8" max.
Overall Dimensions18" W x 12" D x 50" H
Shipping Weight (crated)120 lbs.
