TENNSMITH Notcher with Box Flange Blades Model 16-18-BF

TENNSMITH Notcher with Box Flange Blades Model 16-18-BF
$1,095
Description

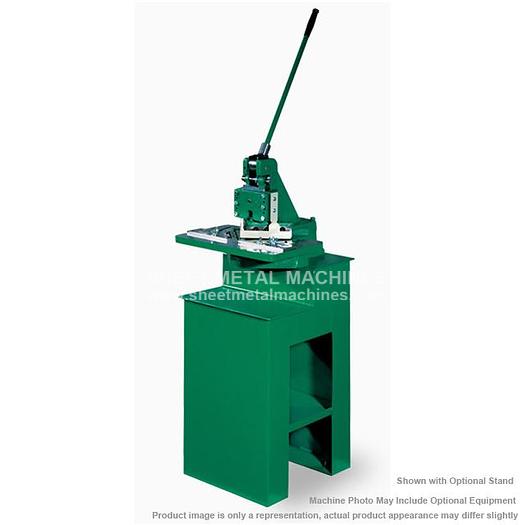

Please note: many products ship straight from manufacturer TENNSMITH 16 - 18 ga Notcher with Box Flange Blades Model 16-18-BR MADE IN USA. TENNSMITH'S notcher, Model 16-18, is a versatile, heavy duty bench tool for shearing, notching, and piercing work. The heavy cast iron construction allows the notcher to be used to side shear six inches of material to its rated capacity; and the throat behind the upper ram is beveled on one side to permit long strips of material to pass without restriction. Notches of more that 90 degrees can be accomplished in two operations. The upper blades can be reversed for a "nose to heal" cutting action; and the ram stroke can be controlled by means of two set screws to permit limited throat piercing and knockout operations. OPTIONAL ITEMS: 86130: MODEL 16-18 Box Flange Blades set of 4: $480 86120: Floor Stand for Model 16-18 Notcher: $310
Specifications
Manufacturer | Tennsmith |
Model | 16-18-BF |
Condition | New |
Stock Number | 86105 |
Maximum Capacity Notching - Mild Steel | 16 ga |
Maximum Capacity Piercing - Mild Steel | 18 ga |
Notch | 6" x 6" x 90° |
Dimensions, Handles Removed (LxWxH) | 19" x 18" x 15" |
Shipping Weight: | 170 lbs. |
