TENNSMITH Notcher Model 16-18

TENNSMITH Notcher Model 16-18


orCall 386-304-3720

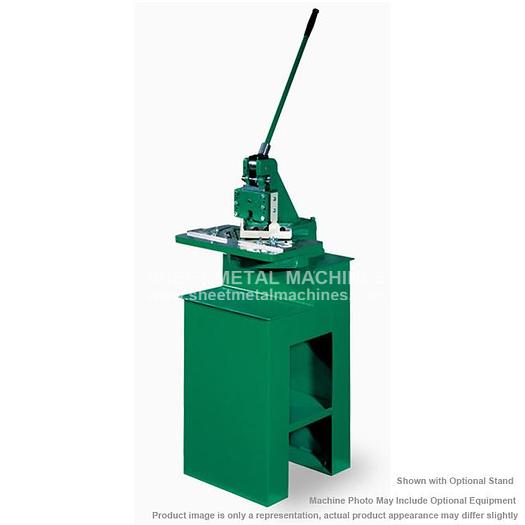

Please note: many products ship straight from manufacturer TENNSMITH 16 - 18 ga Notcher Model 16-18 MADE IN USA. TENNSMITH'S notcher, Model 16-18, is a versatile, heavy duty bench tool for shearing, notching, and piercing work. The heavy cast iron construction allows the notcher to be used to side shear six inches of material to its rated capacity; and the throat behind the upper ram is beveled on one side to permit long strips of material to pass without restriction. Notches of more that 90 degrees can be accomplished in two operations. The upper blades can be reversed for a "nose to heal" cutting action; and the ram stroke can be controlled by means of two set screws to permit limited throat piercing and knockout operations. OPTIONAL ITEMS: 86125: MODEL 16-18 Regular Blades set of 4: $350 86120: Floor Stand for Model 16-18 Notcher: $310


Stock Number86100
Maximum Capacity Notching - Mild Steel16 ga
Maximum Capacity Piercing - Mild Steel18 ga
Notch6" x 6" x 90°
Dimensions, Handles Removed (LxWxH)19" x 18" x 15"
Shipping Weight:170 lbs.
