RONG FU Geared Head Mill Drill RF-45

RONG FU Geared Head Mill Drill RF-45

Contact us for price

orCall 386-304-3720

Description

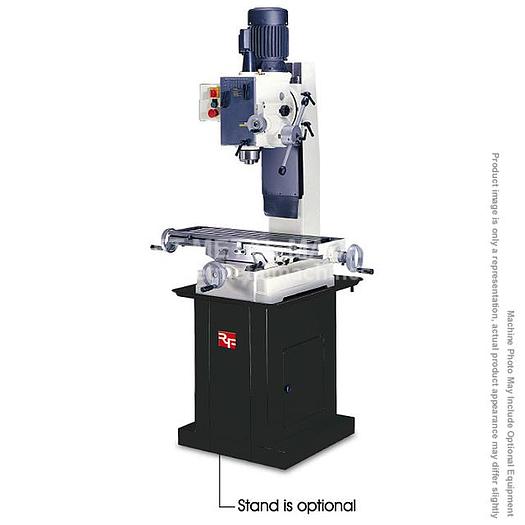

Please note: many products ship straight from manufacturer RONG FU Geared Head Mill Drill RF-45 ITEM: 32" x 9.5" Geared Head Mill Drill MANUFACTURER: RONG FU (BIRMINGHAM) MODEL: RF-45 The Rong Fu RF-45 Milling Drilling machine is perfect for a wide range of applications: milling, drilling, boring, reaming. It's built with sturdy construction and not limited to skilled operators.

Specifications

ManufacturerRong Fu
ModelRF-45
ConditionNew
Stock NumberRF-45
Face Mill100mm (4")
End Mill20mm (3/4")
Tapping (Optional)20mm (3/4")
In Light Alloy40mm (1-1/2")
TaperMT3 or R8
Stroke107mm
Depth255mm
Table Size820 x 240mm (32.28" x 9.45")
X Travel520mm
Y Travel210mm
Column Diameter
No. of Slot4
Main Motor1 HP (3-phase) / 1.5 HP (1-phase)PLEASE SPECIFY
2 Speed Motor (Optional)60Hz / 65-3100 50Hz / 55-2520 (12 speeds)
Packing Dimensions36" x 29" x 47" (915 x 737 x 1194mm)
Net Weight725 lbs. (330kg)
Gross Weight795 lbs. (360kg)
