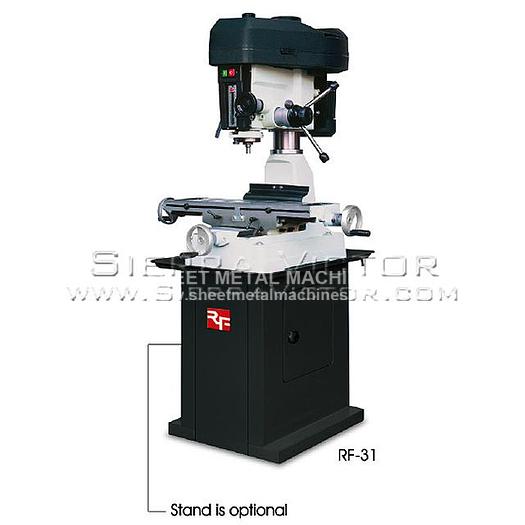

RONG FU 29" x 8" Mill / Drill Machine RF-31

Wide range of applications: milling, drilling, boring, reaming. Sturdy construction and not limited to skilled operators. Maxi spindle strokes for spindle power down feed is 107mm STANDARD ACCESSORIES: Chuck Arbor Cutting Arbor Handle Rod Knob Punch Key (MT3) 1/2" Drill Chuck Table handle wheel Head handle 3" Face Cutter 3" U Type Vise Lock handle for head body


ManufacturerRong Fu
Stock NumberRF-31
Face Mill76mm (3")
End Mill20mm (3/4")
Tapping (Optional)16mm (5/8")
In Light Alloy32mm (1-1/4")
TaperMT3 or R8
Table Size730 x 210mm (28.7" x 8.26")
X Travel460mm
Y Travel190mm
Column DiameterØ115mm
No. of Slot4
T Slot Size16 x 26mm
Main Motor1.5 HP, 1 PH
2 Speed Motor (Optional)60Hz / 75-3000 50Hz / 62-2500 (24 speeds)
Packing Dimensions (without Stand)32" x 30" x 46" (810 x 740 x 1150mm)
Net Weight505 lbs. (230kg)
Gross Weight560 lbs. (255kg)
