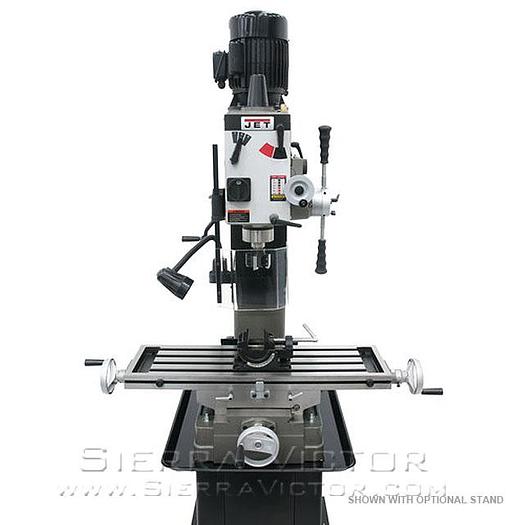

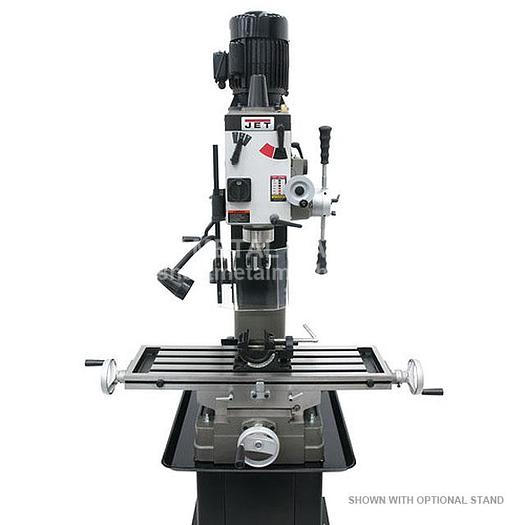

JET JMD-45VSPF Variable Speed Square Column Geared Head Mill/Drill 351050

JET JMD-45VSPF Variable Speed Square Column Geared Head Mill/Drill 351050

$5,999

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET JMD-45VSPF Variable Speed Square Column Geared Head Mill/Drill ITEM: JMD-45VSPF Variable Speed Square Column Geared Head Mill/Drill MANUFACTURER: JET MODEL: JMD-45VSPF PART# 351050 Engineered to maximize production, the heavy-duty JMD-45VSPF variable speed Square Column Geared Head Mill Drill with power downfeed capability delivers the rigidity needed to perform a variety of precision drilling applications in high intensity environments. Heavy-duty design allows for a variety of precision drilling applications Full power to the cutting tools through Variable Speed geared head Square column with dovetail ways CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified Spindle guard Work Lamp Calibrated fine down feed built inCalibrated fine down feed built in Easy to read internal depth gauge Head tilts left & right 90º Rapid spindle speed changes through quick-select gear shift levers Forward/reverse switch Power Downfeed standard Milling table allows for movement R8 spindle allows use of all mill tooling 350045 - CS-18, Floor Stand For Mill/Drills: $339.00 JMD-45GHPF GEARED HEAD MILL DRILL PACKAGES PART # ITEM 351154 JMD-45VSPF Variable Speed Square Column Geared Head Mill Drill with NEWALL DP700 2-AXIS DRO 351155 JMD-45VSPF Variable Speed Square Column Geared Head Mill Drill with NEWALL DP700 2-AXIS DRO & X-Axis Powerfeed 351162 JMD-45VSPF Variable Speed Square Column Geared Head Mill Drill with NEWALL DP500 2-AXIS DRO 351163 JMD-45VSPF Variable Speed Square Column Geared Head Mill Drill with NEWALL DP500 2-AXIS DRO & X-Axis Powerfeed

Specifications

ManufacturerJet
ModelJMD-45VSPF
ConditionNew
Stock Number351050
Part #351050
Drilling Capacity (in.)1-1/2
Face Mill Capacity (in)4
End Mill Capacity (in.)3/4
Swing (In.)19-11/16
Max Distance Spindle to Table (In.)18-1/8
Spindle Taper (In. x TPI)R-8
Spindle Travel (In.)5
Spindle Travel Auto (In.)4-1/4
Quill Diameter (In.)3
Column Diameter (In.)7-7/8 x 7-5/8 Square
Number of Spindle SpeedsVariable Speed
Range of Spindle Speeds (RPM)50-2500
Table Size (L x W) (In.)9-1/2 x 32-1/4
Table Longitudinal Travel (In.)20-1/2
Base Dimensions (In.)26-11/16 x 15-15/16
Motor1-1/2HP, 115/230V, 1Ph
Overall Dimensions (in.)29 x 36 x 50
Net Weight (lb.)827
