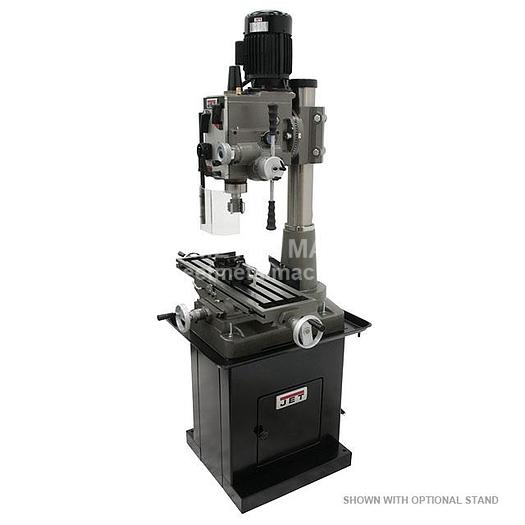

JET JMD-45GHPF Geared Head Square Column Mill/Drill with Power Downfeed 351046

JET JMD-45GHPF Geared Head Square Column Mill/Drill with Power Downfeed 351046

$5,669 Buy a JET Mill Drill and get a FREE #350045 Stand! A $349 Value! Ends 6/30/21

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET JMD-45GHPF Geared Head Square Column Mill/Drill with Power Downfeed 351046 ITEM: JMD-45GHPF Geared Head Square Column Mill/Drill with Power Downfeed MANUFACTURER: JET MODEL: JMD-45GHPF PART# 351046 The heavy-duty JMD-45GHPF Square Column Geared Head Mill Drill with power downfeed capability is engineered to deliver the rigidity needed to perform a variety of precision drilling applications in high intensity environments. Heavy-duty design allows for a variety of precision drilling applications Full power to the cutting tools through 6 speed geared head Square column with dovetail ways CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified Spindle guard Work Lamp Calibrated fine down feed built in Easy to read internal depth gauge Head tilts left & right 90º Rapid spindle speed changes through quick-select gear shift levers Forward/reverse switch Power Downfeed standard Milling table allows for movement R8 spindle allows use of all mill tooling OPTIONAL MODELS:

PLEASE CALL US FOR OTHER AVAILABLE CONFIGURATIONS: 386-304-3720

Specifications

ManufacturerJet
ModelJMD-45GHPF
ConditionNew
Stock Number351046
Drilling Capacity (in.)1-1/2
Face Mill Capacity (in)4
End Mill Capacity (in.)3/4
Swing (In.)19-11/16
Max Distance Spindle to Table (In.)18-1/8
Spindle Taper (In. x TPI)R-8
Spindle Travel (In.)5
Quill Diameter (In.)3
Column Diameter (In.)7-7/8 x 7-5/8 Square
Number of Spindle Speeds6
Range of Spindle Speeds (RPM)65-1550
Table Size (L x W) (In.)9-1/2 x 32-1/4
Table Longitudinal Travel (In.)20-1/2
T-Slots Number and Size (In.)4 & 5/8
Base Dimensions (In.)26-11/16 x 15-15/16
Motor1-1/2HP, 115/230V, 1Ph
Overall Dimensions (in.)29 x 36 x 50
Net Weight (lb.)820
