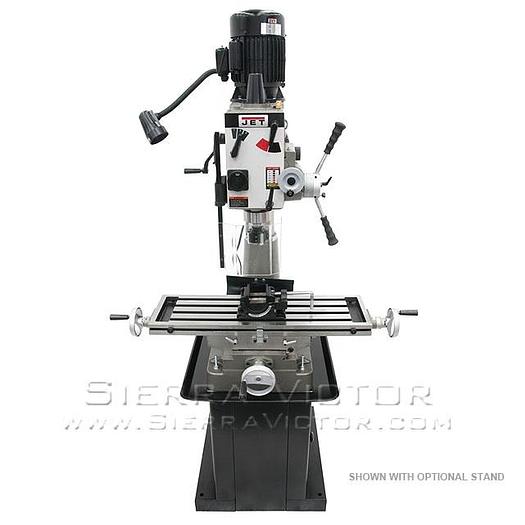

JET JMD-40GHPF Geared Head Mill/Drill with Power Downfeed 351041
JET JMD-40GHPF Geared Head Mill/Drill with Power Downfeed 351041
$5,829 More Options Available - Please Contact
Description
Please note: many products ship straight from manufacturer JET JMD-40GHPF Geared Head Mill/Drill with Power Downfeed 351041 Engineered for precision drilling, the heavy-duty JMD-40GHPF Round Column Geared Head Mill Drill with power downfeed is loaded with intuitive features for maximum accuracy. Heavy-duty design allows for a variety of precision drilling applications Full power to the cutting tools through 6 speed geared head CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified Spindle guard Work Lamp Calibrated fine down feed built in Easy to read internal depth gauge Head tilts left & right 90º Rapid spindle speed changes through quick-select gear shift levers Forward/reverse switch Power Downfeed standard Milling table allows for movement R8 spindle allows use of all mill tooling OPTIONAL MODELS:
PLEASE CALL US FOR OTHER AVAILABLE CONFIGURATIONS: 386-304-3720
Specifications
| Manufacturer | Jet |
| Model | JMD-40GHPF |
| Condition | New |
| Stock Number | 351041 |
| Drilling Capacity (in.) | 1-1/2 |
| Face Mill Capacity (in) | 4 |
| End Mill Capacity (in.) | 3/4 |
| Swing (In.) | 21 |
| Max Distance Spindle to Table (In.) | 15-3/4 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| Spindle Travel Auto (In.) | 4-1/2 |
| Quill Diameter (In.) | 3 |
| Column Diameter (In.) | 4-1/2 |
| Number of Spindle Speeds | 6 |
| Range of Spindle Speeds (RPM) | 65-1550 |
| Table Size (L x W) (In.) | 8-1/4 x 28-3/4 |
| Table Longitudinal Travel (In.) | 20-1/2 |
| T-Slots Number and Size (In.) | 4 & 5/8 |
| Base Dimensions (In.) | 24-1/4" x 15-15/16" |
| Motor | 1-1/2HP, 115/230V, 1Ph |
| Overall Dimensions (in.) | 28 x 39-1/4 x 42-1/2 |
| Net Weight (lb.) | 721 |
