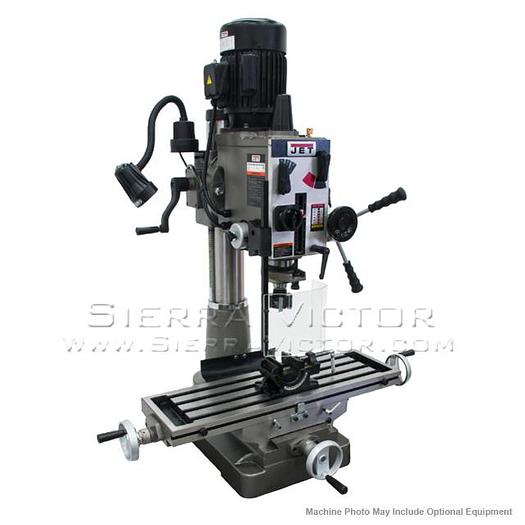

JET JMD-40GH Geared Head Mill/Drill 351040

JET JMD-40GH Geared Head Mill/Drill 351040

$3,699

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET JMD-40GH Geared Head Mill/Drill 351040 Engineered for precision drilling, the heavy-duty JMD-40GH Round Column Geared Head Mill Drill is loaded with intuitive features for maximum accuracy. Heavy-duty design allows for a variety of precision drilling applications Full power to the cutting tools through 6 speed geared head CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified Spindle guard Work Lamp Calibrated fine down feed built in Easy to read internal depth gauge Head tilts left & right 90º Rapid spindle speed changes through quick-select gear shift levers Forward/reverse switch Milling table allows for movement R8 spindle allows use of all mill tooling ITEM: JMD-40GH Geared Head Mill/Drill MANUFACTURER: JET MODEL: JMD-40GH PART# 351040 350045: CS-18, Floor Stand For Mill/Drills: $339.00 JMD-40GH GEARED HEAD MILL DRILL PACKAGES PART # ITEM 351140 JMD-40GH Geared Head Mill Drill with NEWALL DP700 2AXIS DRO 351141 JMD-40GH Geared Head Mill Drill W/Newall Dp700 2Axis Dro & X-Powerfeed 351144 JMD-40GH Geared Head Mill Drill with NEWALL DP500 2AXIS DRO 351145 JMD-40GH Geared Head Mill Drill with NEWALL DP500 2AXIS DRO & X-Powerfeed

Specifications

ManufacturerJet
ModelJMD-40GH
ConditionNew
Stock Number351040
Part #351040
Drilling Capacity (in.)1-1/4 Mild Steel
Face Mill Capacity (in)4
End Mill Capacity (in.)3/4
Swing (In.)21
Max Distance Spindle to Table (In.)15-3/4
Spindle Taper (In. x TPI)R-8
Spindle Travel (In.)5
Quill Diameter (In.)3
Column Diameter (In.)4-1/2
Number of Spindle Speeds6
Range of Spindle Speeds (RPM)65, 130, 220, 480, 925, 1550rpm
Table Size (L x W) (In.)32-1/4" x 9-1/2"
Table Longitudinal Travel (In.)20-1/2
T-Slots Number and Size (In.)4 & 5/8 x1
Base Dimensions (In.)24-1/4" x 15-15/16"
Motor1-1/2HP, 115/230V, 1Ph
Overall Dimensions (in.)28 x 39-1/4 x 42-1/2
Net Weight (lb.)694
