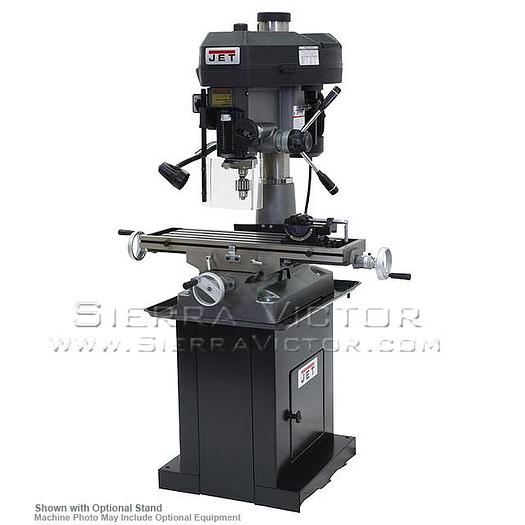

JET JMD-18 Mill/Drill With R-8 Taper 115/230V 1Ph 350018

JET JMD-18 Mill/Drill With R-8 Taper 115/230V 1Ph 350018

$2,499 FREE Stand - ends 6/30/20

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET JMD-18 Mill/Drill With R-8 Taper 115/230V 1Ph, 350018 Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability. One-piece cast iron column for added support Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds Base taper allows for easier clean up Drill Press angle vise UL Listed motor Extra large worktable Positive quick-stop knob and easy to read internal depth gauge 360° head swivel Work lamp Forward and Reverse Switch 1/2” drill chuck, chuck arbor Draw bar Drill Chuck Guard Adjustable Carbide facemill ITEM: 18" Drilling/Milling Machine MANUFACTURER: JET MODEL: JMD-18 PART# 350018

Specifications

ManufacturerJet
ModelJMD-18
ConditionNew
Stock Number350018
Part #350018
Drilling Capacity (in.)1-1/4
Face Mill Capacity (in)3
End Mill Capacity (in.)3/4
Swing (In.)15-7/8
Max Distance Spindle to Table (In.)18
Spindle Taper (In. x TPI)R-8
Spindle Travel (In.)5
Spindle Travel Auto (In.)
Quill Down Feed Rates (IPR)
Quill Diameter (In.)3
Column Diameter (In.)4-1/2
Number of Spindle Speeds12
Range of Spindle Speeds (RPM)150 - 3,000
Table Size (L x W) (In.)9-1/2 x 32-1/4
Table Longitudinal Travel (In.)20-1/2
Work Table Weight Capacity (Lbs.)400
T-Slots Number and Size (In.)4, 5/8
T-Slot Centers (In.)1-13/16
Base Dimensions (In.)15-3/4 x 23-3/4
Motor2 HP, 115/230V,1Ph Prewired 115V
Overall Dimensions (in.)47 x 40 x 51
Net Weight (lb.)660
