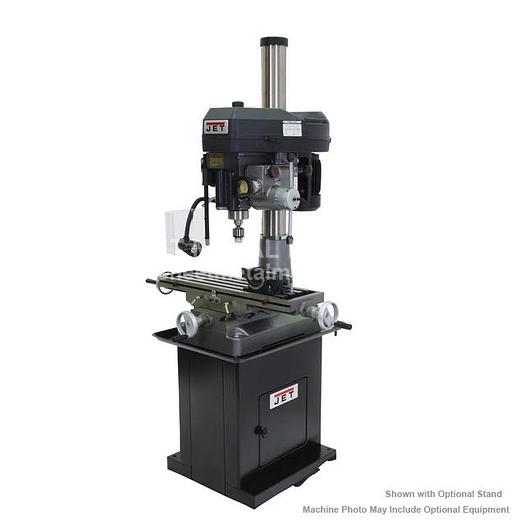

JET JMD-18PFN Mill/Drill With Power Downfeed 115/230V 1Ph 350020
JET JMD-18PFN Mill/Drill With Power Downfeed 115/230V 1Ph 350020
$4,319 More Options Available - Please Contact
Description
Please note: many products ship straight from manufacturer JET JMD-18PFN 26"Mill/Drill With Power Downfeed 115/230V 1Ph, 350020 Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability. One-piece cast iron column for added support Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds Base taper allows for easier clean up Drill Press angle vise UL Listed motor Extra large worktable Positive quick-stop knob and easy to read internal depth gauge 360° head swivel Work lamp Heavy-duty power downfeed with manual fine feed (JMD-18PFN) 1/2” drill chuck, chuck arbor Draw bar Drill Chuck Guard Adjustable Carbide facemill
OPTIONAL MODELS:
PLEASE CALL US FOR OTHER AVAILABLE CONFIGURATIONS: 386-304-3720
Specifications
| Manufacturer | Jet |
| Model | JMD-18PFN |
| Condition | New |
| Stock Number | 350020 |
| Drilling Capacity (in.) | 1-1/4 |
| Face Mill Capacity (in) | 3 |
| End Mill Capacity (in.) | 3/4 |
| Swing (In.) | 15-7/8 |
| Max Distance Spindle to Table (In.) | 26 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| Spindle Travel Auto (In.) | 4-1/4 |
| Quill Down Feed Rates (IPR) | 0.004, 0.007, 0.001 |
| Quill Diameter (In.) | 3 |
| Column Diameter (In.) | 4-1/2 |
| Number of Spindle Speeds | 12 |
| Range of Spindle Speeds (RPM) | 150 - 3,000 |
| Table Size (L x W) (In.) | 9-1/2 x 31-3/4 |
| Table Longitudinal Travel (In.) | 20-1/2 |
| Work Table Weight Capacity (Lbs.) | 400 |
| T-Slots Number and Size (In.) | 4, 5/8 |
| T-Slot Centers (In.) | 1-13/16 |
| Base Dimensions (In.) | 15-3/4 x 23-3/4 |
| Motor | 2 HP, 230V Only, 1 Ph |
| Overall Dimensions (in.) | 47 x 40 x 51 |
| Net Weight (lb.) | 700 |
