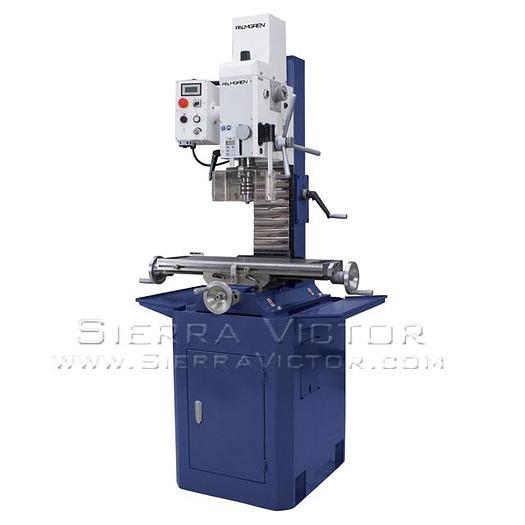

PALMGREN Gear Head Milling Machine 9680165

PALMGREN Gear Head Milling Machine 9680165

$5,789

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer PALMGREN Gear Head Milling Machine 9680165 ITEM: 17" Variable Speed Gear Head Milling Machine MANUFACTURER: PALMGREN PART# 9680165 Palmgren’s deluxe gear head milling machine delivers the precision, power and versatility to handle a wide range of machining operations normally performed in much larger and more expensive milling machines. The all gear drive transmission delivers full power at any speed driving the cutting tools at nearly 100% of the available horsepower and torque. This mill is equipped with a high performance brushless DC motor with permanent current control and the latest technology variable speed inverter providing the broadest range of spindle speeds to fit any application. A rigid box column with hardened, ground and hand scraped dovetail ways provide accurate head positioning with minimum deflection and vibration. The milling head can be tilted right or left up to 90°. Precision machine tool spindle equipped with taper roller bearings and a guaranteed spindle concentricity of .0005˝ at the spindle nose. The cross slide table is precision ground with T-slots, adjustable limit stops, scale and three satin metal adjusting hand wheels. For added versatility our gear head mill comes with an automatic tapping mode providing high quality threads and an auto mode which allows the starting and stopping of the spindle through the three spoke hand wheel for greater productivity. This all-purpose mill is ideal for milling, drilling, slotting, engraving, boring, tapping and angle machining operations in all types and sizes of shops. Controls: AUTO ON/OFF MODE In the automatic mode, the motor will start automatically when the hand lever is pulled down and stops at the initial “up” position. This way, it is not necessary to press the push button Start and Stop for repeated drilling tasks. TAPPING MODE The motor is activated by moving the star grip/ - handle downward. The spindle direction is changed by limit switches on the adjustable depth stop. STANDARD EQUIPMENT: Tapping cycle Depth stop Digital speed readout Digital readout depth gauge Interlocking spindle safety guard Draw bar Way cover

Specifications

ManufacturerPALMGREN
Model9680165
ConditionNew
Stock Number9680165
Drilling Capacity in Casting (max.)1.1"
Drilling Capacity in Steel (max.)0.9"
Milling Capacity Cutter Head (max.)2.9"
Milling Capacity End Mill Cutter (max.)1.2"
Working Range42.3 in / 31.3 in / 49.0 in
Draw Bar Thread7/16 in - 20 drawbar
Quill Travel3.5"
Gearbox Stages3
Z-Axis Travel18.5"
Middle150 - 1500 RPM
High300 - 3000 RPM
X-Axis7.9"
Y-Axis17.7"
T-Slot Size / Distance/ Quantity1/2 in / 2.45 in / 3
Width98.4"
Height82.7"
Net Weight584 lbs.
