U.S. INDUSTRIAL Manual Variable Speed Milling Machine Package 2VH-3-KIT

U.S. INDUSTRIAL Manual Variable Speed Milling Machine Package 2VH-3-KIT

$14,295 FREE SHIPPING!

orCall 386-304-3720

Description

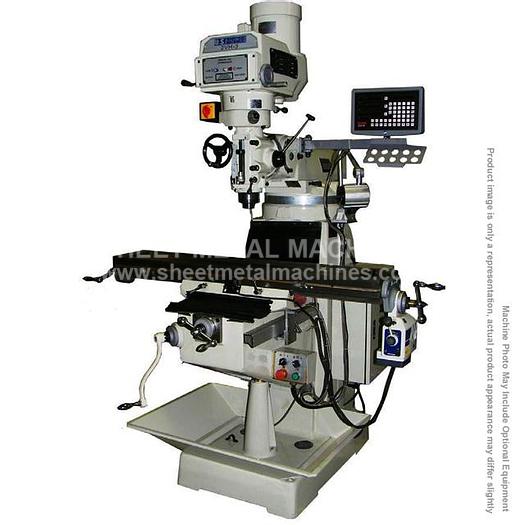

Please note: many products ship straight from manufacturer U.S. INDUSTRIAL 9" x 49" Manual Variable Speed Milling Machine Package 2VH-3-KIT

KIT PACKAGE ONLY:

  • 9” x 49” table with 3 T-slots, 5/8”, on 2.5” centers, Table travel is 33”. Leadscrew pitch is 5 TPI with dials on each end graduated in .001”.
  • Travel of crossfeed is 12” with .001” dial graduations
  • Knee travel is 15.74” with 10TPI leadscrew, .001” dial graduations
  • Ram allows for over 12” of travel, for variable throat depth
  • Conventional dovetail ways on X,Y, and Z Axis - Double locks on all axis
  • Aged stressed castings, stress relieved for long life and accuracy, Meehanite type
  • Power quill feed allows for 0.0018, 0.003, 0.006 Inches of feed per revolution of spindle
  • Hardened and ground and precisely scraped work table, saddle and knee ways
  • Centralized one-shot lubrication pump lubricates all way surfaces and leadscrews
  • Backlash adjustment for leadscrews, Gib adjustments for ways
  • Electrical cabinet with internal transformer for 110V and 24V devices, circuit breaker protected, Low Voltage controls, 24 volt halogen machine light. Transformer also includes power supply for digital readout and power table feed.
  • Operator low voltage controls for coolant pump, machine light, main power with emergency stop button. Spindle off/forward/reverse switch
  • Built in coolant tank base with coolant pump, pressure and return hose , nozzle and valve, Installed and ready to use. Base chip pan to help prevent coolant overflow.
  • Manual variable speed spindle drive, 3 Horsepower runs the spindle from 60 to 4200 RPM. Spindle speed dial on head shows RPM in direct drive and back gear. Spindle motor is finned for cooling.
  • Sino three axis digital readout has 0.0002” resolution. Readout comes mounted to knee, table and cross and is ready to use. The readout is inch/metric switchable, with absolute incremental function. There is a calculator function, bolt hole pattern function, line pattern function, and arc calculate function. A comprehensive manual is included.
  • Power table feed is Align model AL500SP. Infinitely variable feed from .8 to 32 IPM with rapid button, on/off switch, and adjustable travel stops. This heavy duty power feed has 150 inch pounds of torque, with max to 650. Power table feed comes installed on machine, ready to use.
  • Toolbox and tools, manuals, electrical drawing, test certificate all included

STANDARD EQUIPMENT: PART# AL500SP: Heavy duty power table feed on X axis PART# FCKIT: Flood coolant pump, hose, nozzle PART# CPKIT: Chip pan PART# MLKIT: Machine light PART# FRWCKIT: Front and Rear way covers PART# SINO3AX: Three axis digital readout OPTIONAL ITEMS - CALL FOR PRICE: PART #PDB-PB001: Air Power Drawbar, pneumatic, installed PART #Y150-3V: Bestline Power Feed for Y-axis (cross feed) PART #Z150-3V: Bestline Power Feed for Z-axis (knee feed) PART #R8ER32KIT-K: Mill QC collet set, 1 holder R-8 to ER32, 1 spanner for collet nut, 11 ER32 collets from 1/8” to 3/4”, all in form fitted case PART #CK-K: Clamp kit, 58 piece, bolts, nuts, step blocks, fingers, for fixturing PART #P100-K: Precision Parallel Set, several matched parallels in form case PART #6” VISE-K: Milling vise, 6” lock type PART #R8-SET: R-8 collet set, 11 pieces

Specifications

ManufacturerUS Industrial
Model2VH-3-KIT
ConditionNew
Stock Number2VH-3-KIT
Table Size - 3 t-slots, 5/8" on 2.5" centers9" x 49"
Table Travel w/ Powerfeed Installed29"
Cross Travel w/ Readout Installed11"
Knee Travel15.74"
Ram Travel12"
Quill Travel5"
Power quill feed - .0018, .003, .006 IPRYes
Head Tilt - Left and Right - With Degree Scale90 degrees
Head Tilt - Front and Back - With Degree Scale45 degrees
Ram Swivel on Turret - With Degree Scale360 degrees
Spindle TaperR8
Machine Ways, Table, Cross and KneeDovetail
Maximum Weight of Workpiece and Fixture500 lbs.
Electrical Cabinet with Disconnect & Circuit BreakersYes
Spindle Drive3 HP
Vari-Speeds Spindle RPM Range60 to 4200
Voltage, 3 Phase220 or 440 (please specify)
Amp Requirement @ 220 Volts10
Includes Schneider Electronic Spindle DriveNo
Includes Manual Variable Speed SpindleYes
Includes Heavy Duty Power Table FeedYes
Includes Flood Coolant SystemYes
Includes Base Chip PanYes
Includes Machine LightYes
Includes Front & Rear Way CoversYes
Includes SINO 3-Axis Digital Readout, inch/metricYes
100% Inspection, Calibration Prior to ShippingYes
Shipping Dimension - L x W x H on skid6' x 6' x 80"
Machine Weight 2,550 lbs.
