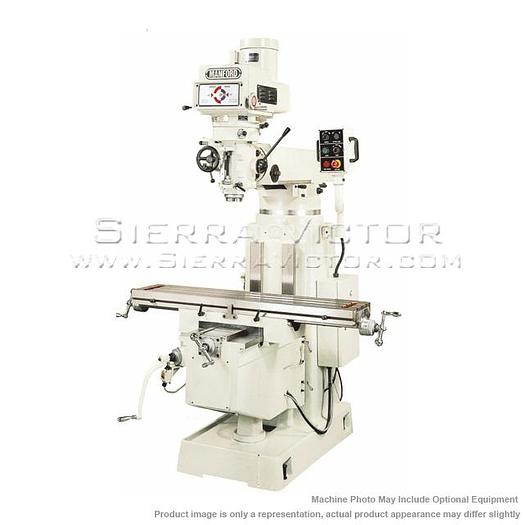

MANFORD SP-520VS Variable Speed Super Precision Vertical Turret Milling Machine

MANFORD SP-520VS Variable Speed Super Precision Vertical Turret Milling Machine
$13,800
Description
Please note: many products ship straight from manufacturer MANFORD 10" x 54" Super Precision Vertical Turret Milling Machine SP-500VS 10” x 54” Table , long saddle & box way on Y Hardened & Ground Table with Ground T-Slot 3HP Spindle Inverter Motor, Electronic variable speed R8 Spindle Material Scm415 (SAE4115) Hardened & Ground. Bearing support to the motor shaft Unique rigid design on spindle auto-feed, spline design on the pinion & clutch support Turcite-B On X&Y Ways, Slideways and Gibs. Hardened & Ground X&Y Slideways. Electroless Nickel-Phosphorus Process On X&Y leadscrew with hardness 35 HRC. Leadscrew nut made from PBC2, phosphor bronze Highly Improved Variable Speed Head. Rubber chip cover (front & rear ) 1-1/2” (38mm) Diameter Lifting Screw. Leveling Screw & Plate On Base. Tool box & Tool Rubber chip cover ( front & rear ) Two-year warranty for all mechanical and one-year for electrical components ITEM: 10" x 54" Super Precision Vertical Turret Milling Machine MANUFACTURER: MANFORD MODEL: SP-500VS 11” x 58” table option: $600 Align AL-500 Power feed for X: $600 Coolant system (1/8 HP,3PH,220V ): $400 Coolant tray (Base): $300 Quartz work light: $160 CE electrical box (surcharge): $600 EVS head with 5HP Inver motor and Driver, 5000 rpm: $2,000 Newall DP700 mill package, 3 Axis: $2,350 Newall DP700 mill package, 2 Axis: $1,750 CALL FOR MORE OPTIONS
Specifications
Manufacturer | Manford |
Model | SP-520VS |
Condition | New |
Stock Number | SP-520VS |
Table | 10” x 54” (250 x 1370mm) |
T-Slot No.x Size | 3” x 0.629” (3 x 16mm) |
Cross travel | 16” (410mm) |
Travel of knee | 17” (450mm) |
Ram travel | 22” (562mm) |
Quill travel | 5” (127mm) |
Table to spindle nose (D) | 3 3/4”- 21” (95-545mm) |
Over swivel on turret | 360º |
Head Swivel ( R & L ) | 90º |
Head tilt ( UP & DOWN ) | Option |
Spindle to column (F): | 7”-29” (178-738mm) |
Spindle motor: | 5HP |
Spindle taper | NST#40 |
Quill feed | 0.0015” - 0.003” - 0.006” |
Spindle Speed (r.p.m.): | ( 60Hz) 60-4300 |
Overall height (A): | 93-1/2” (2375mm) |
Overall depth (B): | 83.5” (2120mm) |
Overall width (C): | 70” (1790mm) |
Net Weight | 3,500 lbs. (1600 Kgs) |
