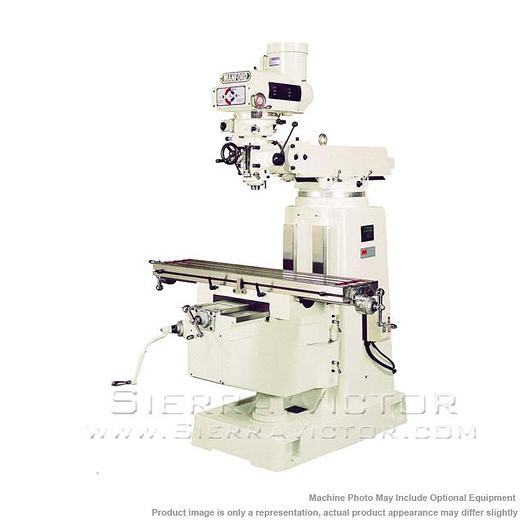

MANFORD SP-500VS Super Precision Vertical Turret Milling Machine

MANFORD SP-500VS Super Precision Vertical Turret Milling Machine

$11,200

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer MANFORD 10" x 54" Super Precision Vertical Turret Milling Machine SP-500VS 10” x 54” Table , long saddle & box way on Y Hardened & Ground Table with Ground T-Slot 3HP Spindle Inverter Motor, Electronic variable speed R8 Spindle Material Scm415 (SAE4115) Hardened & Ground. Bearing support to the motor shaft Unique rigid design on spindle auto-feed, spline design on the pinion & clutch support Turcite-B On X&Y Ways, Slideways and Gibs. Hardened & Ground X&Y Slideways. Electroless Nickel-Phosphorus Process On X&Y leadscrew with hardness 35 HRC. Leadscrew nut made from PBC2, phosphor bronze Highly Improved Variable Speed Head. Rubber chip cover (front & rear ) 1-1/2” (38mm) Diameter Lifting Screw. Leveling Screw & Plate On Base. Tool box & Tool Rubber chip cover ( front & rear ) Two-year warranty for all mechanical and one-year for electrical components ITEM: 10" x 54" Super Precision Vertical Turret Milling Machine MANUFACTURER: MANFORD MODEL: SP-500VS EVS Head, 3HP inverter motor with Driver 60-5000 rpm: $1,600 11” x 58” table option: $600 Coolant system (1/8 HP,3PH,220V ): $400 Quartz work light: $160 Newall DP700 mill package, 3 Axis: $2,350 Newall DP700 mill package, 2 Axis: $1,300 CALL FOR MORE OPTIONS

Specifications

ManufacturerManford
ModelSP-500VS
ConditionNew
Stock NumberSP-500VS
Table10” x 54” (250 x 1370mm)
T-Slot No.x Size3” x 0.629” (3 x 16mm)
With power feed30.5” (775mm)
Cross travel16” (410mm)
Travel of knee17” (450mm)
Ram travel22” (562mm)
Quill travel5” (127mm)
Table to spindle nose (D)3.3” — 21” (85-535mm)
Over swivel on turret360º
Head Swivel ( R & L )+45º
Head tilt ( UP & DOWN )45º
Spindle to column (F):6.6”-28.7” (168-730mm)
Spindle motor:3HP inverter motor
Spindle taperR8
Quill feed0.0015” - 0.003” - 0.006”
Spindle Speed (r.p.m.):( 60Hz) 60-5000
Overall height (A):90” (2262mm)
Overall depth (B):83.5” (2120mm)
Overall width (C):72.4” (1840mm)
Net Weight3,600 lbs. (1500 Kgs)
