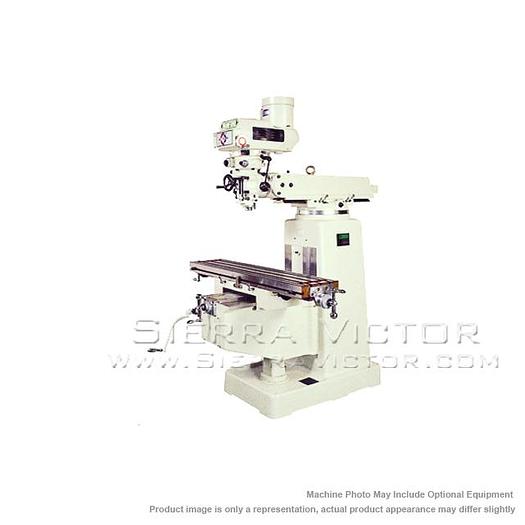

MANFORD SP-460VS Super Precision Vertical Turret Milling Machine
MANFORD SP-460VS Super Precision Vertical Turret Milling Machine
$12,600
Description
Please note: many products ship straight from manufacturer MANFORD 10" x 54" Super Precision Vertical Turret Milling Machine SP-460VS 10 X 54” Table long saddle & box way on Y Hardened & Ground Table with Ground T-Slot 3HP Spindle Motor, variable speed R8 (or NST#30) Spindle Material Scm415(SAE4115)Hardened & Ground. Bearing support to the motor shaft Licensed Meehanite Casting Unique rigid design on spindle auto-feed, spline design on the pinion & clutch support Turcite-B On X&Y Ways, Slideways and Gibs. Hardened & Ground X&Y Slideways. Electroless Nickel-Phosphorus Process On X&Y leadscrew with hardness 35 HRC. Leadscrew nut made from PBC2, phosphor bronze Highly Improved Vari-Speed Head. Rubber chip cover (front & rear ) 1-1/2”(38mm) Diameter Lifting Screw. Leveling Screw & Plate On Base. Tool box & Tools Rubber chip cover ( front & rear ) Machine made in Taiwan complete Two-year warranty for all mechanical and one-year for electrical components
OPTIONAL ITEMS:
- Align AL-500 Power feed for X: ......................................... $ 800.00
- Servo model 150 Power Feed X (M-0200-150):................. $ 1,100.00
- Servo model 150 Power Feed Y (M-3550-150):................. $ 1,375.00
- Align AL-500 Power feed for Y OR Z:................................. $ 850.00
- Servo power feed (Z axis) Model 200 (M-3580-200):......... $ 1,300.00
- Coolant system (1/8 HP,3PH,220V )....................................$ 400.00
- Coolant tray (Base)........................................................... $ 300.00
- Quartz work light:............................................................... $ 260.00
- 6” Angle-fixed milling vise with swivel base:........................ $ 460.00
- Clamping kit (54 pcs):........................................................ $ 100.00
- R8 Right Angle Attachment complete set........................... $ 880.00
DRO System:
- Newall DP700 mill package, 3 Axis .....................................$ 2600.00
- Newall DP700 mill package, 2 Axis......................................$ 1900.00
- Sino DRO system, 2 axis.....................................................$ 1000.00
- Mitutoyo Quill kit..................................................................$ 600.00
Power Drawer bar:
- Automatic Power Drawbar (R8 ) ........................................ $ 800.00
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – All Mechanical
WARRANTY: 1 YEAR – Electrical Components
Specifications
| Manufacturer | Manford |
| Model | SP-460VS |
| Condition | New |
| Stock Number | SP-460VS |
| Table | 10” x 54” (250 x 1370mm) |
| T-Slot No.x Size | 3” x 0.629” (3 x 16mm) |
| Table Load | 800 lbs. |
| With power feed | 30.5” (775mm) |
| Cross travel | 15-3/8” (390mm) |
| Travel of knee | 15-3/8” (390mm) |
| Ram travel | 22” (560mm) |
| Quill travel | 5” (127mm) |
| Table to spindle nose (D) | 4” — 20” (100-506mm) |
| Over swivel on turret | 360º |
| Head Swivel ( R & L ) | +45º |
| Head tilt ( UP & DOWN ) | 45º |
| Spindle to column (F): | 6.25”-28.3” (159-719mm) |
| Spindle motor: | 3HP |
| Spindle taper | R8 (or NST#30 ) |
| Quill feed | 0.0015” - 0.003” - 0.006” |
| Spindle Speed (r.p.m.): | ( 60Hz) 60-4500, ( 50Hz ) 50-3800 |
| Overall height (A): | 87” (2211mm) |
| Overall depth (B): | 82” (2087mm) |
| Overall width (C): | 72.4” (1840mm) |
| Net Weight | 3,000 lbs. (1300 Kgs) |
