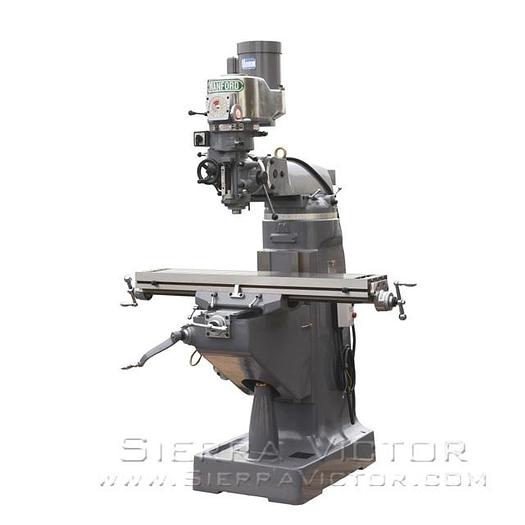

MANFORD Precision High Quality 2VS Vertical Turret Milling Machine

MANFORD Precision High Quality 2VS Vertical Turret Milling Machine

$8,200

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer MANFORD 9" x 42" Precision High Quality 2VS Vertical Turret Milling Machine 9” x 42” Table Variable speed, 3HP Spindle Motor, 220/440V, 3 phase R8 (NST#30) Spindle Hardened & Ground. Chrome-Plated Slide Ways and Gibs Hardened & Ground Table top. Double brass-nut backlash compensated on XY leadscrew Meehanite casting Chrome plated precision ground quill with internal ground of quill housing Class 7 spindle bearing Power quill feeds with automatic stop Tool box & Tools Rubber chip cover (front & rear ) ISO 9002 Certification Quill diameter 3-3/8” One shot lubrication system Tool and tool box Made in Taiwan by Manford ITEM: 9" x 42" Precision High Quality Vertical Turret Milling Machine MANUFACTURER: MANFORD MODEL: 2VS CALL FOR PRICE: Align AL-300 Power feed for X Align AL-500 Power feed for X Servo model 150 Power Feed X Servo model 150 Power Feed Y Align AL-500 Power feed for Y OR Z Servo power feed (Z axis) Model 200 Servo Turbo power feed on any axis Coolant system (1/8 HP,3PH,220V ) Coolant tray (Base) Riser block 4” /6”/8” Quartz work light 6” Angle-fixed milling vise with swivel base Clamping kit (54 pcs) R8 Right Angle Attachment complete set Newall DP700 mill package, 3 Axis Newall DP700 mill package, 2 Axis FAGOR 20i M, LED Screen 2 Axis FAGOR 30i M, LED Screen 3 Axis FAGOR 40i TFT LCD Screen, 3 Axis Ficom DRO system, 2 axis Acu-Rite VUE DRO, 2 axis Acu-Rite 200S DRO, 2 axis Acu-Rite 200S DRO, 3 axis with Quill scale Acu-Rite 200S DRO, 3 axis with knee scale Mitutoyo Quill kit

Specifications

ManufacturerManford
Model2VS
ConditionNew
Stock NumberMODEL 2VS
Table9” x 42” (228 x 1066mm)
T-Slot No.x Size3” x 5/8” (3 x 15.875mm)
Longitudinal travel (W power feed )30” (762mm)
Cross travel12” (305mm)
Travel of knee16” (406mm)
Ram travel15” (390mm)
Quill travel5” (127mm)
Table to spindle nose (D)1.3” – 17.3” (34-440mm)
Over swivel on turret360º
Head Swivel ( R & L )90º
Head tilt ( UP & DOWN )45º
Spindle to column (F):6” x 21.4” (153x544mm)
Spindle motor:3 HP
Spindle taperR8
Quill feed0.0015” - 0.003” - 0.006”
Spindle Speed (r.p.m.):( 60Hz) 70-4500
Overall height (A):84” (2140mm)
Overall depth (B):63-5/8” (1618mm)
Overall width (C):59” (1497mm)
Net Weight2,200 lbs. (950 Kgs)
