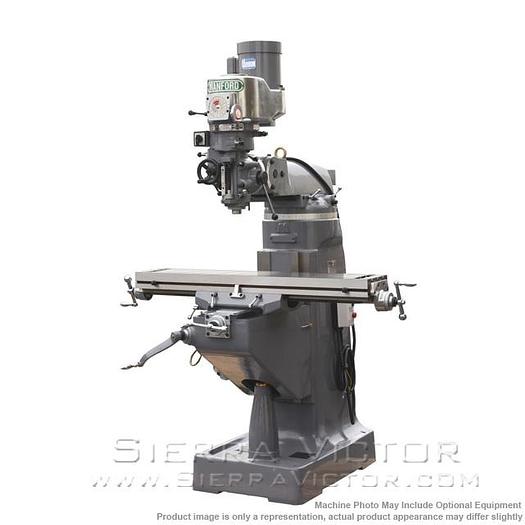

MANFORD Precision High Quality 2V Vertical Turret Milling Machine
MANFORD Precision High Quality 2V Vertical Turret Milling Machine
$10,800
Description
Please note: many products ship straight from manufacturer MANFORD 9" x 49" Precision High Quality 2V Vertical Turret Milling Machine
- 9” X 49” Table
- Variable speed, 3HP Spindle Motor, 220/440V, 3 phase
- R8 (NST#30) Spindle Hardened & Ground.
- Chrome-Plated Slide Ways and Gibs
- Hardened & Ground Table top.
- Double brass-nut backlash compensated on XY leadscrew
- Meehanite casting
- Chrome plated precision ground quill with internal ground of quill housing
- Class 7 spindle bearing
- Power quill feeds with automatic stop
- Tool box & Tools
- Rubber chip cover (front & rear )
- ISO 9002 Certification
- Quill diameter 3-3/8”
- One shot lubrication system
- Tool and tool box
- Made in Taiwan by Manford
- One-year warranty for all mechanical and one-year for electrical components
OPTIONAL ITEMS:
- Align AL-500 Power feed for X: ......................................... $ 800.00
- Servo model 150 Power Feed X (M-0200-150):................. $ 1,100.00
- Servo model 150 Power Feed Y (M-3550-150):................. $ 1,375.00
- Align AL-500 Power feed for Y OR Z:................................. $ 850.00
- Servo power feed (Z axis) Model 200 (M-3580-200):......... $ 1,300.00
- Coolant system (1/8 HP,3PH,220V )....................................$ 400.00
- Coolant tray (Base)........................................................... $ 300.00
- Quartz work light:............................................................... $ 260.00
- 6” Angle-fixed milling vise with swivel base:........................ $ 460.00
- Clamping kit (54 pcs):........................................................ $ 100.00
- R8 Right Angle Attachment complete set........................... $ 880.00
DRO System:
- Newall DP700 mill package, 3 Axis .....................................$ 2600.00
- Newall DP700 mill package, 2 Axis......................................$ 1900.00
- Sino DRO system, 2 axis.....................................................$ 1000.00
- Mitutoyo Quill kit..................................................................$ 600.00
Power Drawer bar:
- Automatic Power Drawbar (R8 ) ........................................ $ 800.00
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – All Mechanical
WARRANTY: 1 YEAR – Electrical Components
Specifications
| Manufacturer | Manford |
| Model | 2V |
| Condition | New |
| Stock Number | 2V |
| Table | 9” x 49” (228 x 1066mm) |
| T-Slot No.x Size | 3” x 5/8” (3 x 15.875mm) |
| Longitudinal travel (W power feed ) | 36” (762mm) |
| Cross travel | 12” (305mm) |
| Travel of knee | 16” (406mm) |
| Ram travel | 15” (390mm) |
| Quill travel | 5” (127mm) |
| Table to spindle nose (D) | 1.3” – 17.3” (34-440mm) |
| Over swivel on turret | 360º |
| Head Swivel ( R & L ) | 90º |
| Head tilt ( UP & DOWN ) | 45º |
| Spindle to column (F): | 6” x 21.4” (153x544mm) |
| Spindle motor: | 3 HP |
| Spindle taper | R8 |
| Quill feed | 0.0015” - 0.003” - 0.006” |
| Spindle Speed (r.p.m.): | ( 60Hz) 70-4500 |
| Overall height (A): | 84” (2140mm) |
| Overall depth (B): | 63-5/8” (1618mm) |
| Overall width (C): | 59” (1497mm) |
| Net Weight | 2,200 lbs. (950 Kgs) |
