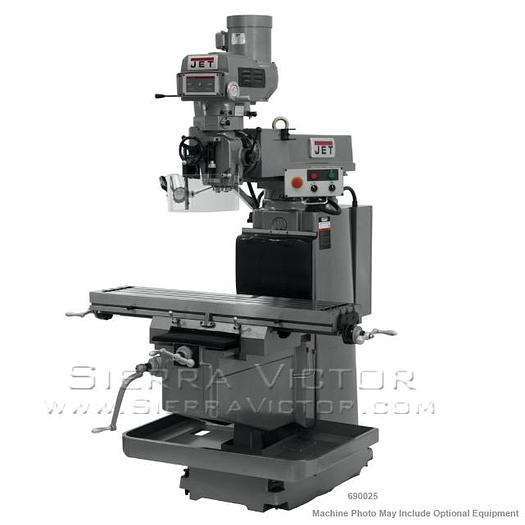

JET JTM-1254VS Variable Speed Vertical Mill Machine 230/460V 3Ph 690025

JET JTM-1254VS Variable Speed Vertical Mill Machine 230/460V 3Ph 690025

$14,999

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET JTM-1254VS Variable Speed Vertical Mill Machine 230/460V, 3Ph, 690025 The JET JTM-1254RVS and JTM-1254VS combine durability, strength and precision engineering, resulting in 12” x 54” Variable Speed Vertical Milling Machines that turn out high quality components. Designed for ease of use, Jet Mills provide ongoing automatic lubrication and quick nut spindle feed along with the JET exclusive new casting, providing the end-user with an easier solution to leveling the machine without raising it up off the floor. These heavy-duty mills are offered in both R-8 & NT-40 Spindles. Certified Meehanite Castings Precision bored and honed milling head High precision Class 7 spindle bearings Quick Spindle Feed Nut Three-stage power downfeed with automatic stop Heavy-duty spindle brake Precision hardened and ground ways and table Three Precision ground t-slots Turcite B on X & Y Axis Adjustable gibs throughout CSA/CUS: Following strict guidelines and electrical requirements, these JET Mills are CSA/CUS certified Spindle Guard Spindle Brake for rapid stopping of the spindle Automatic Lubrication every 180 minutes with a flow of 3-6cc reduces maintenance Quick nut for spindle feed JET exclusive new casting provides the end-user an easier solution to leveling the machine without raising it up off the floor Way covers STANDARD EQUIPMENT: Spindle Safety Guard Led Machine Lamp Dual Locks on All Moveable Surfaces Chip Pan Draw bar Tool box with tools ITEM: 12" x 54" Variable Speed Vertical Mill MANUFACTURER: JET MODEL: JTM-1254VS PART# 690025 PART # ITEM 660126 EXTERNAL COOLANT SYSTEM OPTIONAL MILL PACKAGES PART # ITEM 698025 JTM-1254VS With X Powerfeed 698027 JTM-1254VS With X & Y Powerfeeds 698029 JTM-1254VS With X, Y & Z Powerfeeds MILLS WITH ACU-RITE VUE DRO 698031 JTM-1254VS With ACU-RITE VUE DRO, X Powerfeed 698033 JTM-1254VS With ACU-RITE VUE DRO X & Y Powerfeeds 698035 JTM-1254VS With ACU-RITE VUE DRO X, Y & Z Powerfeeds 698037 JTM-1254VS With ACU-RITE VUE 3X (K) DRO & X Powerfeed 698039 JTM-1254VS With ACU-RITE VUE 3X (K) DRO, X & Y Powerfeeds 698041 JTM-1254VS With ACU-RITE VUE 3X (K) DRO, X, Y & Z Powerfeeds 698043 JTM-1254VS With ACU-RITE VUE 3X (Q) DRO & X Powerfeed 698045 JTM-1254VS With ACU-RITE VUE 3X (Q) DRO, X & Y Powerfeeds 698047 JTM-1254VS With ACU-RITE VUE 3X (Q) DRO, X, Y & Z Powerfeeds MILLS WITH ACU-RITE 200S DRO 698049 JTM-1254VS With ACU-RITE 200S DRO, X Powerfeed 698051 JTM-1254VS With ACU-RITE 200S DRO X & Y Powerfeeds 698053 JTM-1254VS With ACU-RITE 200S DRO X,Y&Z Powerfeeds 698055 JTM-1254VS With ACU-RITE 200S 3X (K) DRO & X Powerfeed 698057 JTM-1254VS With ACU-RITE 200S 3X (K) DRO, X & Y Powerfeeds 698059 JTM-1254VS With ACU-RITE 200S 3X (K) DRO, X, Y & Z Powerfeeds 698061 JTM-1254VS With ACU-RITE 200S 3X (Q) DRO & X Powerfeed 698063 JTM-1254VS With ACU-RITE 200S 3X (Q) DRO, X & Y Powerfeeds 698065 JTM-1254VS With ACU-RITE 200S 3X (Q) DRO, X, Y & Z Powerfeeds MILLS WITH ACU-RITE 300S DRO 698146 JTM-1254VS With ACU-RITE 300S DRO, X Powerfeed 698148 JTM-1254VS With ACU-RITE 300S DRO X & Y Powerfeeds 698150 JTM-1254VS With ACU-RITE 300S DRO X, Y & Z Powerfeeds 698152 JTM-1254VS With ACU-RITE 300S 3X (K) DRO & X Powerfeed 698154 JTM-1254VS With ACU-RITE 300S 3X (K) DRO, X & Y Powerfeeds 698156 JTM-1254VS With ACU-RITE 300S 3X (K) DRO, X, Y & Z Powerfeeds 698158 JTM-1254VS With ACU-RITE 300S 3X (Q) DRO & X Powerfeed 698160 JTM-1254VS With ACU-RITE 300S 3X (Q) DRO, X & Y Powerfeeds 698162 JTM-1254VS With ACU-RITE 300S 3X (Q) DRO, X, Y & Z Powerfeeds MILLS WITH NEWALL DP700 DRO 698067 JTM-1254VS With Newall DP700 DRO & X Powerfeed 698069 JTM-1254VS With Newall DP700 DRO X & Y Powerfeeds 698071 JTM-1254VS With Newall DP700 DRO X, Y & Z Powerfeeds 698074 JTM-1254VS With Newall DP700 3X (K) DRO, X & Y Powerfeeds 698076 JTM-1254VS With Newall DP700 3X (K) DRO, X, Y & Z Powerfeeds 698078 JTM-1254VS With Newall DP700 3X (Q) DRO & X Powerfeed 698080 JTM-1254VS With Newall DP700 3X (Q) DRO, X & Y Powerfeeds 698082 JTM-1254VS With Newall DP700 3X (Q) DRO, X,Y&Z Powerfeeds 698144 JTM-1254VS With Newall DP700 3X (K) DRO, X Powerfeed

Specifications

ManufacturerJet
ModelJTM-1254VS
ConditionNew
Stock Number690025
Table Size (L x W)12" x 54"
Spindle Taper (In. x TPI)NT40
Quill Diameter4-1/8"
Number of Spindle SpeedsVariable
Range of Spindle Speeds (RPM)80 - 3,800
Quill Down Feed Rates (IPR).0015–.003–.008
Spindle Travel5"
Head Movement (Deg.)90°R & L
Max Distance Spindle to Table23"
Distance Spindle to Column (Max.)27-3/4"
Distance Spindle to Column (Min.)7-1/2"
Collet Capacity1/8" - 1"
Table Longitudinal Travel33-7/8"
Table Longitudinal Travel With Powerfeed33-7/8"
Table Cross Travel15-1/3"
T-Slots Number and Size3" and 5/8"
T-Slot Centers2-1/2"
Work Table Weight Capacity925 lbs.
Travel of Knee19-1/4"
Travel of Ram25"
Saddle Width25-5/8"
Y- AxisSquare
Z- AxisSquare
Column Width14-1/4"
Motor5HP, 230/460V, 3Ph
Prewired230V, 3Ph
Overall Dimensions (L x W x H)92-1/8" x 79-7/8" x 104-1/4"
Net Weight3,260 lbs.
Gross Weight3,696 lbs.
