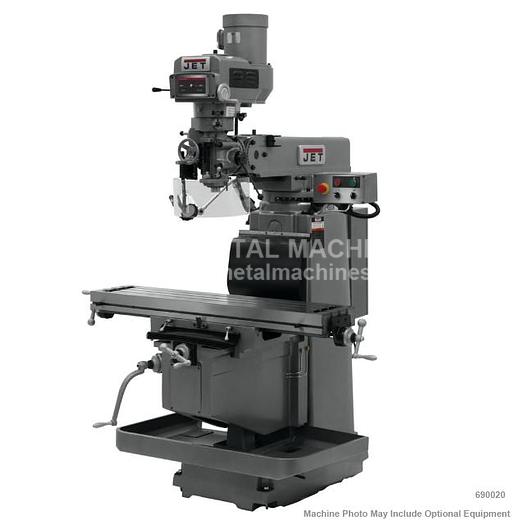

JET JTM-1254RVS Variable Speed Vertical Mill Machine 230/460V 3Ph 690020
JET JTM-1254RVS Variable Speed Vertical Mill Machine 230/460V 3Ph 690020
$15,299 Free 5 Gallon Pail of JET Biodegradeable Coolant with Purchase of JET Mill - Ends 6/30/21
Description
Please note: many products ship straight from manufacturer JET JTM-1254RVS Variable Speed Vertical Mill Machine 230/460V, 3Ph, 690020 The JET JTM-1254RVS and JTM-1254VS combine durability, strength and precision engineering, resulting in 12” x 54” Variable Speed Vertical Milling Machines that turn out high quality components. Designed for ease of use, Jet Mills provide ongoing automatic lubrication and quick nut spindle feed along with the JET exclusive new casting, providing the end-user with an easier solution to leveling the machine without raising it up off the floor. These heavy-duty mills are offered in both R-8 & NT-40 Spindles with all the features you've come to expect. Certified Meehanite Castings Precision bored and honed milling head High precision Class 7 spindle bearings Quick Spindle Feed Nut Three-stage power downfeed with automatic stop Heavy-duty spindle brake Precision hardened and ground ways and table Three Precision ground t-slots Turcite B on X & Y Axis Adjustable gibs throughout CSA/CUS: Following strict guidelines and electrical requirements, these JET Mills are CSA/CUS certified Spindle Guard Spindle Brake for rapid stopping of the spindle Automatic Lubrication every 180 minutes with a flow of 3-6cc reduces maintenance Quick nut for spindle feed JET exclusive new casting provides the end-user an easier solution to leveling the machine without raising it up off the floor Two 115V outlets on electrical box for Powerfeeds only
STANDARD EQUIPMENT: Spindle Safety Guard Led Machine Lamp Dual Locks on All Moveable Surfaces Chip Pan Draw bar Tool box with tools
ITEM: 12" x 54" Variable Speed Vertical Mill MANUFACTURER: JET MODEL: JTM-1254RVS PART#690020 OPTIONAL MODELS:
PLEASE CALL US FOR OTHER AVAILABLE CONFIGURATIONS: 386-304-3720
Specifications
| Manufacturer | Jet |
| Model | JTM-1254RVS |
| Condition | New |
| Stock Number | 690020 |
| Table Size (L x W) | 12" x 54" |
| Spindle Taper (In. x TPI) | R8 |
| Number of Axis | 3 |
| Quill Diameter | 3-3/8" |
| Number of Spindle Speeds | Variable |
| Range of Spindle Speeds (RPM) | 80 - 3,800 |
| Quill Down Feed Rates (IPR) | .0015–.003–.008 |
| Spindle Travel | 5" |
| Head Movement (Deg.) | 90°R & L 45° F & B |
| Max Distance Spindle to Table | 23" |
| Distance Spindle to Column (Max.) | 27-3/4" |
| Distance Spindle to Column (Min.) | 7-1/2" |
| Collet Capacity | 1/8" - 1" |
| Table Longitudinal Travel | 33-7/8" |
| Table Longitudinal Travel With Powerfeed | 28-1/4" |
| Table Cross Travel | 15-1/3" |
| T-Slots Number and Size | 3" and 5/8" |
| T-Slot Centers | 2-1/2" |
| Work Table Weight Capacity | 925 lbs. |
| Travel of Knee | 19-1/4" |
| Travel of Ram | 25" |
| Saddle Width | 25-5/8" |
| Y- Axis | Square |
| Z- Axis | Square |
| Column Width | 14-1/4" |
| Motor | 5HP, 230/460V, 3Ph |
| Prewired | 230V, 3Ph |
| Overall Dimensions (L x W x H) | 92-1/8" x 79-7/8" x 104-1/4" |
| Net Weight | 3,260 lbs. |
| Gross Weight | 3,696 lbs. |
