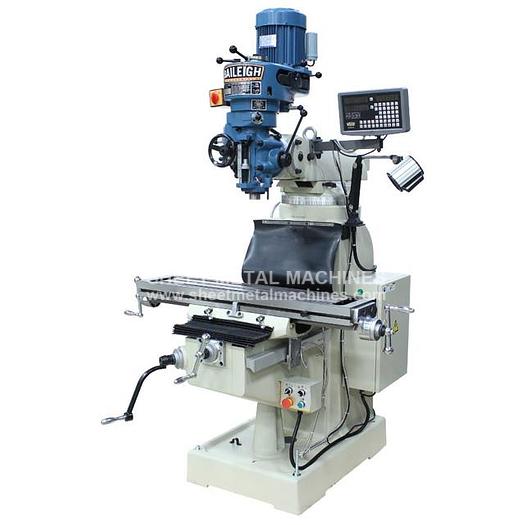

BAILEIGH Vertical Knee Mill VM-942E-1

BAILEIGH Vertical Knee Mill VM-942E-1


orCall 386-304-3720


Please note: many products ship straight from manufacturer BAILEIGH 9" x 42" Vertical Knee Mill VM-942E-1 Baileigh Industrial has a line of vertical milling machines to meet any shops requirements, whether it is price, size, or power. The VM-942E-1 vertical milling machine fits into the price category, but that does not mean that it doesn’t have features to back it up and make it a great value. The VM-942 is an 8 speed milling machine that allows speed adjustments from 60 to 2760 rpm. Being able to fine tune the speed of the quill is important in prolonging tooling life and saving money. Speaking of the quill or spindle Baileigh Industrial has specified a R8 spindle taper for the VM-942E-1. The R8 taper is the most common taper in the industry making tooling easy to source. The VM-942E-1 has a powerful 3 hp motor that runs on 220 volt single phase power and features a two axis digital read out. Other standard features of the VM-942 milling machine include a, coolant system dovetail slide ways, way covers, and halogen wok light.

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



ManufacturerBaileigh Industrial
Stock NumberVM-942E-1
Spindle Speeds8
Spindle Travel5"
Spindle Speed Range80, 140, 230, 350, 650, 1100, 1800, 2760 RPM
T-Slot Width5/8"
Table Size42" x 9"
Spindle Center To Column Min Max0 – 12"
Spindle Diameter3-11/32"
Spindle Feed Per Rev.0015"/.003"/.006"
Spindle Head Swivel45° (F&R) 90° (R&L)
Motor Spindle3 HP
Travel Auto X Axis25-1/4"
Travel Auto Y Axis12-1/8"
Travel Auto Z Axis14-5/8"
Spindle Nose To Table Min Max2-3/8" – 17"
Spindle TaperR8
Table Load Capacity770 lbs.
Motor Coolant1/8 HP
Cross Travel Of Ram13-1/2"
Power220V / 1-phase
Shipping Dimensions60" x 60" x 83"
Shipping Weight2,100 lbs.
