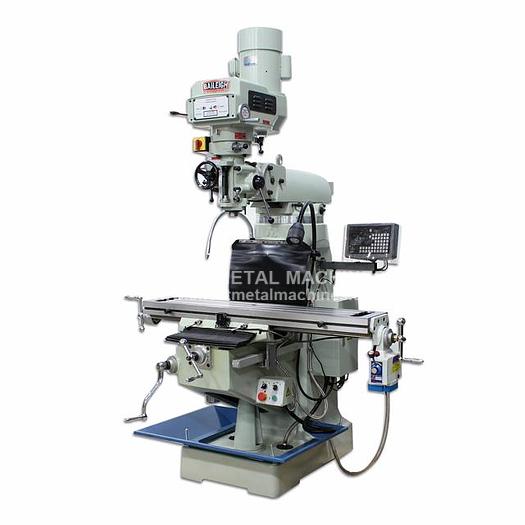

BAILEIGH Vertical Knee Mill VM-949E-VS

BAILEIGH Vertical Knee Mill VM-949E-VS


orCall 386-304-3720


Please note: many products ship straight from manufacturer BAILEIGH 9" x 49" Vertical Knee Mill VM-949E-VS Looking to take the next step from a mill-drill or step pulley mill? Take a look at the Baileigh Industrial VM-949E-VS. This 9x49 workhorse is outfitted with a 3HP continuous duty motor requiring only 220V single phase power, making it perfect for hobbyists, small shops, and professionals alike. This knee mill has a familiar old-school feel, while having many creature comforts not typically found in this market range. These features and standard accessories include: Variable spindle speed by adjustable sheaves/pulleys - Control spindle RPM with the turn of a handle Infinitely adjustable variable speed from 60 to 4,200rpm – Allows tooling to run at its intended speed, resulted in longer tool life and better finishes R8 spindle and drawbar - Accepts the most common tooling Meehanite Casting – Rigid and dependable for decades of use Spindle brake – Easier tool changes and quick spindle stops 3 speed power quill feed w/ manual wheel – Perfect for boring and accurate, consistent work DRO for X and Y axes Power feed X axis w/ rapid – Consistent travel speed without tiresome cranking Dovetail ways w/ adjustable gibs – Keep tolerances tight year after year Taiwan lead screws w/ backlash adjustable nuts – Remove backlash instead of compensating for it Way covers and wipers – Keep chips off ways and bed Integrated coolant system w/ splash guard – Large 6-gallon reservoir in the base houses the pump. Plumbed return line from the table eliminates overflow and messes LED work light One-shot lubricator – Keep up on lubrication maintenance by simply pulling a lever

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



ManufacturerBaileigh Industrial
Stock NumberVM-949E-VS
Spindle Speeds60 - 4,200RPM Infinitely Variable
Distance from Spindle to Table18.5"
Spindle Travel4.9"
Spindle Speed Range60 to 4200 RPM
Spindle Feeds.003" .0015" .008"
Power FeedX axis
Table Size9" x 49"
Range of Movement90° Left and Right, 45° Front and Back
Spindle Diameter3.3"
Motor3 HP
X Axis Travel31-5/8"
Y Axis Travel11-3/16"
Z Axis Travel13-3/4"
Spindle TaperR8
T Slots.625"
Drill Capacity2"
Power220V / 1-phase
Shipping Dimensions49" x 44" x 84"
Shipping Weight1,820 lbs.
