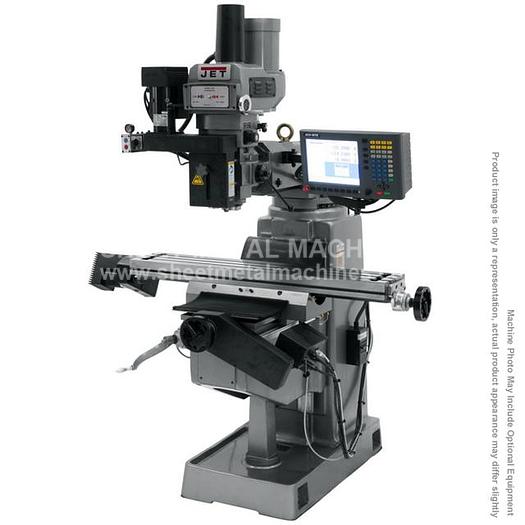

JET JTM-949EVS/230 Mill With 2-Axis ACU-RITE G-2 MILLPWR CNC, 690575

JET JTM-949EVS/230 Mill With 2-Axis ACU-RITE G-2 MILLPWR CNC, 690575

$32,699 Free Basic Online Training for the Acu-Rite G2 Control when you purchase a JET CNC Mill! A $500 Value! ENDS 6/30/21

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET JTM-949EVS/230 Mill With 2-Axis ACU-RITE G-2 MILLPWR CNC, 690575 JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite casted JET Vertical Mills with CNC packages deliver accurate results every time. All the features you've come to expect backed by the industry-leading JET Two Year Warranty Durability Certified Meehanite catings Class 7 bearings support the spindle for maximum ridgity in heavy cutting applications Precision bored and honed milling head Spindle head is internally cooled extending bearing, belt and motor life Quick spindle feed nut easily adjusts to different depths One-piece quill pinion and shaft Three-stage power downfeed with automatic stop Heavy-duty spindle brake Precision hardened and ground ways and table Turcite-B on X and Y-Axis Adjustable gibs throughout Safety For added safety, the JTM-949EVS follows strict guidelines and electrical requirements to be certified by CSA Group Swing away spindle guard L.E.D. work lamp Internal coolant tank built into casting base Ease of Use Automatic Lubrication every 30 minutes with a flow of 3-6cc reduces maintenance Inverter Drive System and emergency stop located on a swing away control arm moves all major funtions within the operators reach JET exclusive new casting provides an easier solution to leveling the machine without raising it off the floor Two 115V outlets on electrical box for DRO or Powerfeeds Dual locks on all moveable surfaces Chip pan Way covers Draw bar Tool box with tools

ITEM: 9" x 49" CNC Vertical Turret Milling Machine MANUFACTURER: JET MODEL: JTM-949EVS CNC PART# 690575 / 690576


OPTIONAL MODEL:

STOCK# 690576 JTM-949EVS/230 Mill With 3-Axis ACU-RITE G-2 MILLPWR CNC: $36,999

Specifications

ManufacturerJet
ModelJTM-949EVS/230
ConditionNew
Stock Number690575
Table Size (LxW) (In.)9 x 49
Spindle Taper (In. x TPI)R-8
Quill Diameter (In.)3-3/8
Range of Spindle Speeds (RPM)60 - 4,500
Quill Down Feed Rates (IPR).0015 / .003 / .006
Spindle Travel (In.)5
Max Distance Spindle to Table (In.)20-3/4
Distance Spindle to Column (Max.) (In.)18-1/8
Distance Spindle to Column (Min.) (In.)4-3/4
Table Longitudual Travel (In.)36
Table Cross Travel (In.)12-5/8
Travel of Knee (In.)15-3/4
Travel of Ram (In.)15-1/4
T-Slots Number and Size (In.)3 and 5/8
T-Slot Centers (In.)2-1/2
Work Table Weight Capacity (Lbs.)720
Motor (HP)3 HP, 230V,3Ph
Overall Dimensions (L x W x H) (In.)67 x 64 x 86
Weight (Lbs)2,420
DRO MODEMILLPWR-G2
External StorageUSB/Ethernet (RS-232)
Internal Storage2.5 GB Flash (User)
Processor1GHz Celeron M
Display12.1" (1024 x 768)
Windows Off-Line Programing StationYes
Program PreviewListed & Graphic
Filename Filter SearchYes
File Manager NavigationTree
Esitmated Machining TimeYes
Auto Save (Program)Yes
Program Size Limit9,999 Steps
G Code ProgramExtended Support Plus G80 Series Drill Cycles
Block Form Solid Model 3D graphicswith User Override
Program Step NavigationHard Keys & Pop-Up Menu
Custom Pocket & IslandsRamp Feed & Optimized Path
Circle (Pocket, Frame, Ring, Helix)Ramp Feed
Tool LibrarySpecify By Tool Number
Multiple Datum's (Fixture Offsets)99
Graphic ViewLine/3D Shaded
Error CompensationLinear & Bidirectional Non-Linear
