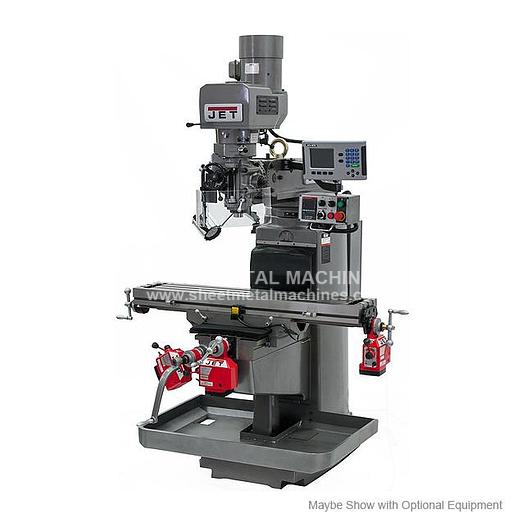

JET JTM-1050EVS2 Mill 230V 3ph 691600

JET JTM-1050EVS2 Mill 230V 3ph 691600

$12,999 Free 5 Gallon Pail of JET Biodegradeable Coolant with Purchase of JET Mill - Ends 6/30/21

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET JTM-1050EVS2/230 Mill with X-Axis Powerfeed, 691600 Constructed using the Meehanite casting process, the JTM-1050EVS2/230, 10" x 50" Electronic Variable Speed Milling Machine provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you've come to expect and are backed by the industry-leading JET Two Year Warranty JET designed Certified Meehanite casting with enhanced ribbing ensures rigidity and tolerance retention Swing away control box houses an e-stop and puts all controls at the operators fingertips The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor Automatic oiler releases 3 to 6 cc/cy of lubrication at adjustable time intervals For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories CSA/CUS Certified Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications Spindle head is internally cooled extending bearing, belt and motor life Table and ways are hardened up to 54 HRC and precision ground for greater accuracy The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements

EQUIPPED WITH: Swing away safety shield LED work lamp Chip pan Dual locks on all moveable surfaces Way covers Drawbar Tool box with tools

ITEM: 10" x 50" EVS Milling Machine MANUFACTURER: JET MODEL: JTM-1050EVS2 PART# 691600


OPTIONAL MODELS:

PLEASE CALL US FOR OTHER AVAILABLE CONFIGURATIONS: 386-304-3720

Specifications

ManufacturerJet
ModelJTM-1050EVS2
ConditionNew
Stock Number691600
Table Size (in.)10 x 50
Spindle TaperR-8
Quill Diameter (in.)3-3/8
Number of Spindle speedsVariable
Range of Spindle Speeds (RPM)60 - 4,500
Quill Down feed Rates (IPR).0015–.003–.006
Quill Travel (in.)5
Head Movement (deg.)90°R & L 45° F & B
Max Distance Spindle to Table ( in.)20-3/4
Distance Spindle to Column (max./in.)26-3/4
Distance Spindle to Column (min./in.)4-3/4
Collet Capacity (in.)1/8 - 7/8
Table Longitudinal Travel (range/in.)29-7/8 - 35-1/3
Table Cross Travel (in.)14-3/4
T-Slots Number and Size (in.)3 and 5/8
T-Slot Centers (in.)2-1/2
Work Table Weight Capacity (lbs.)840
Travel of Knee (in.)16-1/8
Travel of Ram (in.)15-7/8
Saddle Width (in.)20
Column Width (in.)11-1/2
Inverter TypeDelta, B
Motor3HP, 230V, 3Ph
Overall Dim. (in.)
Net Weight (lb.)2,860
