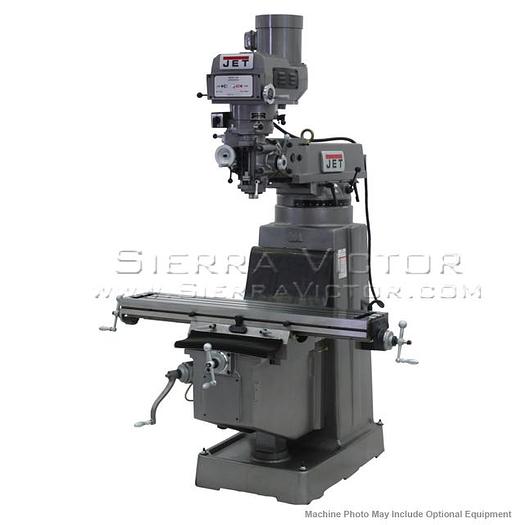

JET JTM-1050 Mill With 3-Axis ACU-RITE G-2 MILLPWR CNC, 690940

JET JTM-1050 Mill With 3-Axis ACU-RITE G-2 MILLPWR CNC, 690940

$37,599

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET JTM-1050 Mill With 3-Axis ACU-RITE G-2 MILLPWR CNC, 690940 JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite casted JET Vertical Mills with CNC packages deliver accurate results every time. All the features you've come to expect backed by the industry-leading JET Two Year Warranty CNC Vertical Milling Machine Package JTM-1050 Features of the ACU-RITE MILLPWR G2 CNC Package Precision Ground Ball Screws eliminate backlash for precice lateral movements Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution Powerful DC Servo motor assemblies that include mounting castings and hardware Handwheels are included for manual operation Features of the ACU-RITE MILLPWR G2 CONTROLLER USB + Ethernet compatible Simplified navigation that eliminates multiple menu screens 12.1" High resolution display (1024 x 768) with 3D graphics 1 GHz Celeron M processor Expanded tool library and Datum offsets Program preview provides a graphical representation prior to operation Progam size limit increased by 90% to 9,999 steps Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously 3-D Contouring, ability to import and run G-code files from CAD/CAM programs Mirror/Repeat/Rotate/Explode/Merge, easily manipulate, explode and merge part programs to save time and reduce program steps Menu-prompted Conversational programming, easily create part programs, edit, reverse, change, delete and copy/move steps - follow the menu prompts and let MILLPWR G2 do the rest Built-in Calculator, perform standard, trig and geometry calculations and transfer them directly into part programs Custom Pockets and Islands utilize the new optimized path and ramp feed features Circles including the Pocket, Frame, Ring and Helix incorporate the new ramp feed feature May be used automatically or manually for ultimate shop versatility Available offline software Estimated runtime feature ITEM: 10" x 50" 3-Axis CNC Vertical Turret Milling Machine MANUFACTURER: JET MODEL: JTM-1050 CNC PART# 690940

Specifications

ManufacturerJet
ModelJTM-1050 CNC
ConditionNew
Stock Number690940
Part#690940
Number CNC Control Axis3
Table Size (LxW) (In.)10 x 50
Spindle Taper (In. x TPI)R-8
Quill Diameter (In.)3-3/8
Number of Spindle SpeedsVariable
Range of Spindle Speeds (RPM)70-3,800
Quill Down Feed Rates (IPR).0015 / .003 / .006
Spindle Travel (In.)5
Head Movement (Deg.)90° R & L, 45° F & B
Max Distance Spindle to Table (In.)19
Distance Spindle to Column (Max.) (In.)26
Distance Spindle to Column (Min.) (In.)5-1/2
Collet Capacity1/8 - 7/8
Table Longitudual Travel (In.)35
Table Cross Travel (In.)15-1/4
T-Slots Number and Size (In.)3 - 5/8
T-Slot Centers (In.)2-1/2
Work Table Weight Capacity (Lbs.)720
Travel of Knee (In.)14-1/4
Travel of Ram (In.)20-1/2
Motor (HP)3 HP, 230/460V,3Ph
Overall Dimensions (L x W x H) (In.)96 x 69 x 87
Weight (Lbs)3,000
DRO MODEMILLPWR-G2
External StorageUSB/Ethernet (RS-232)
Internal Storage2.5 GB Flash (User)
Processor1GHz Celeron®M
Display12.1" (1024 x 768)
Windows Off-Line Programing StationYes
Program PreviewListed & Graphic
Filename Filter SearchYes
File Manager NavigationTree
Esitmated Machining TimeYes
Auto Save (Program)Yes
Program Size Limit9,999 Steps
G Code ProgramExtended Support Plus G80 Series Drill Cycles
Block Form Solid Model 3D graphicswith User Override
Program Step NavigationHard Keys & Pop-Up Menu
Custom Pocket & IslandsRamp Feed & Optimized Path
Circle (Pocket, Frame, Ring, Helix)Ramp Feed
Tool LibrarySpecify By Tool Number
Multiple Datum's (Fixture Offsets)99
Graphic ViewLine/3D Shaded
Error CompensationLinear & Bidirectional Non-Linear
