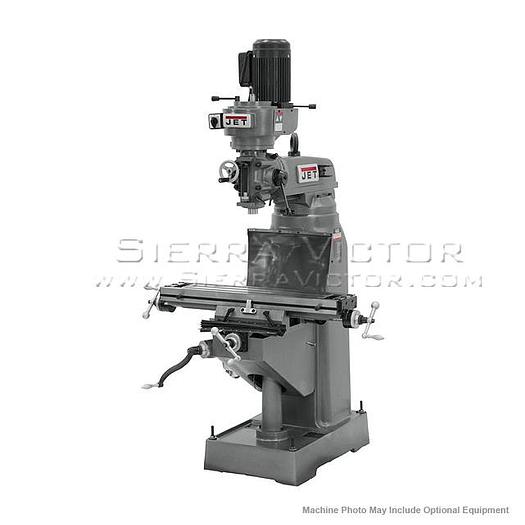

JET JVM-836-1 Step Pulley Milling Machine 115V 1Ph 690036

JET JVM-836-1 Step Pulley Milling Machine 115V 1Ph 690036


orCall 386-304-3720


Please note: many products ship straight from manufacturer JET JVM-836-1 Step Pulley Milling Machine 115V 1Ph, 690036 The precision bored and honed milling head, coupled with the hardened and ground 8” x 36” table ensures retention of tolerances, while locks on all moving surfaces increase user safety. The JET JVM-836 has features you've come to expect that are backed by the industry-leading JET Two Year Warranty Precision bored and honed milling head Large diameter quill is chromed High precision spindle bearings Over 10” of front to back ram travel Locks on all movable surfaces Hardened and ground precision table Head tilts left or right Graduated scale on column Precision ground dovetail ways STANDARD EQUIPMENT: One-shot lubrication system Way covers Draw bar Tool box and tools ITEM: 8" x 36" Step Pulley Milling Machine MNAUFACTURER: JET MODEL: JVM-836-1 PART# 690036


Stock Number690036
Part #690036
Spindle Taper (In. x TPI)R-8
Table Size (L x W) (In.)7-7/8 x 35-3/4
Quill Diameter (In.)3-3/8
Number of Spindle Speeds5
Range of Spindle Speeds (RPM)240 - 1,550
Spindle Travel (In.)5
Head Movement (Deg.)90° R & L
Max Distance Spindle to Table (In.)13-3/4
Distance Spindle to Column (Max.) (In.)15-3/4
Distance Spindle to Column (Min.) (In.)5-1/4
Collet Capacity1/8 - 7/8
Table Longitudinal Travel (In.)22-1/4
Table Cross Travel (In.)9-1/2
Travel of Knee (In.)14
Travel of Ram (In.)10-1/2
T-Slots Number and Size (In.)3 - 5/8
T-Slot Centers (In.)2-1/2
Work Table Weight Capacity (Lbs.)500
Motor1-1/2HP, 115/230V, 1Ph, Prewired 115V
Overall Dimensions55" x 52" x 78"
Net Weight1,617 lbs.
