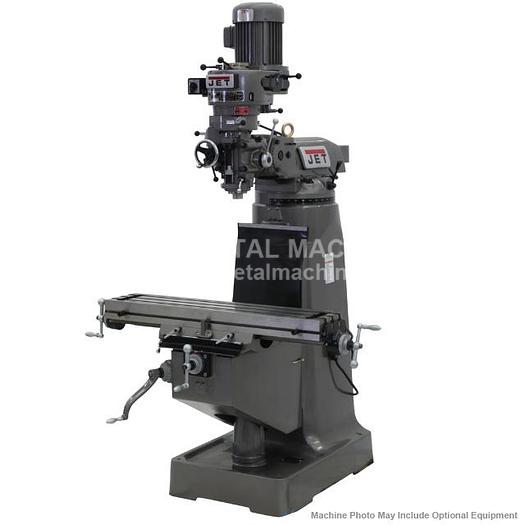

JET JTM-1 Step Pulley Milling Machine 230V 3Ph 690082
JET JTM-1 Step Pulley Milling Machine 230V 3Ph 690082
$8,349
Description
Please note: many products ship straight from manufacturer JET JTM-1 Step Pulley Milling Machine 230V 3Ph, 690082 Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty Certified Meehanite Castings Precision bored and honed milling head Large diameter quill is chromed High precision Class 7 spindle bearings Spindle head is internally cooled Satin chrome finished dials Heavy duty splined motor drive One piece quill pinion and shaft Three stage power downfeed with automatic stop Heavy duty spindle brake Precision hardened and ground ways Standard Equipment Internal coolant tank built into base for use with coolant system (coolant pump not included)
EQUIPPED WITH: Tolerance test sheet included One shot lubrication system Way covers Draw bar Tool box with tools
ITEM: 9" x 42" Vertical Step Pulley Milling Machine MANUFACTURER: JET MODEL: JTM-1 PART# 690082
OPTIONAL MODELS:
PLEASE CALL US FOR OTHER AVAILABLE CONFIGURATIONS: 386-304-3720
Specifications
| Manufacturer | Jet |
| Model | JTM-1 |
| Condition | New |
| Stock Number | 690082 |
| Spindle Taper (In. x TPI) | R-8 |
| Table Size (L x W) (In.) | 9 x 42 |
| Quill Diameter (In.) | 3-3/8 |
| Number of Spindle Speeds | 16 |
| Range of Spindle Speeds (RPM) | 80 - 5,440 |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Spindle Travel (In.) | 5 |
| Head Movement (Deg.) | 90° R & L, 45° F & B |
| Max Distance Spindle to Table (In.) | 17-1/2 |
| Distance Spindle to Column (Max.) (In.) | 19 |
| Distance Spindle to Column (Min.) (In.) | 4-1/2 |
| Collet Capacity | 1/8 - 7/8 |
| Table Longitudinal Travel (In.) | 23-7/8 |
| Table Cross Travel (In.) | 12-1/2 |
| Travel of Knee (In.) | 14-1/2 |
| Travel of Ram (In.) | 13-3/8 |
| T-Slots Number and Size (In.) | 3 - 5/8 |
| T-Slot Centers (In.) | 2-1/2 |
| Work Table Weight Capacity (Lbs.) | 550 |
| Motor | 2HP, 230V Only, 3Ph |
| Overall Dimensions (in.) | 57 x 64 x 82 |
| Net Weight (lb.) | 2,200 |
