GMC Machine Tools Manual Vertical Knee Mill Package GMM-949VPKG

GMC Machine Tools Manual Vertical Knee Mill Package GMM-949VPKG

$9,150 FREE SHIPPING!

orCall 386-304-3720

Description

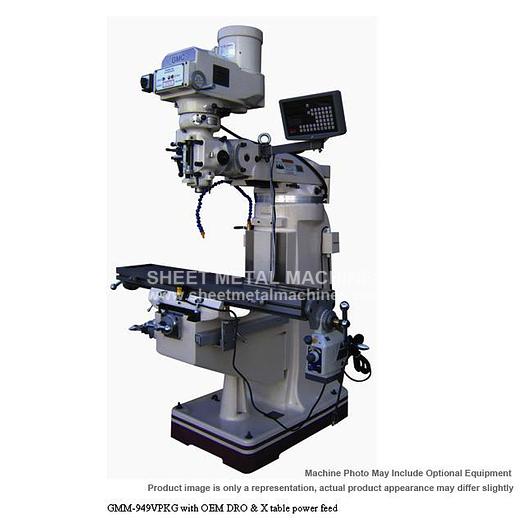

Please note: many products ship straight from manufacturer GMC Manual Vertical Knee Mill Package GMM-949VPKG GMM-949VPKG, 9x49”, vari-spd, free OEM DRO & power feed X Taiwan Made Meehanite Casting Turcite-B Coating on X/Y Ways ISO 9001 Certified Coolant system included Heavy duty 3 HP AC spindle motor, 3 phase ( for ideal of tapping jobs, we strongly recommend to take 3 phase mill with phase converter for single phase conversion) Heavy Duty “Meehanite” casting Hardened & ground dovetail guideways Hand scraped precision ways Hardened & ground table and ground table T-slots Precision ground ACME Leadscrews Chromed ground quill ( spindle ) Chromed dials Adjustable ways Hand brake on mill head Tilting & rotating head Manual or automatic quill feeds 0.0015” , 0.003”, 0.006” per spindle revolution One shot lube system Front and rear rubber chip guards (1) manual draw bar Tool box with tools Power source 220V , 3 phase EQUIPPED WITH: OEM DRO, 2 axis, installed X-Table Power Feed, installed for 949VPKG Way Covers One Draw Bar One Shot Lube Tool Box

OPTIONAL ITEMS: PART #OEM-949 SINO DRO, 2 AXIS GALSS SCALE 12X36", 0.0001", Free Install: $750 PART #NW-949 NEWALL DRO, 2 AXIS, 12X36", 0.0002", Free Install: $1,650 PART #PF-180X Power feed, Taiwan, x axis, 110V: $395 PART #PF-180Y Power feed, Taiwan, y axis, 110V: $495 PART #PF-180Z Power feed, Taiwan, z axis, KEE UP/DOWN,100V: $495

PART #HQR8 Power air draw bar, High Quality(USA): $650 PART #900-0021 6” vise: $295

Specifications

ManufacturerGMC Machine Tools
ModelGMM-949VPKG
ConditionNew
Stock NumberGMM-949VPKG
Table Size9” x 49”
Table Load Capacity650 lbs.
X Axis Travel35-1/2”
Y Axis Travel12"
Z Axis Travel17"
Spindle Taper TypeR 8
Electric220V/440V, 3 PH
AC Spindle Motor3 HP
Spindle speeds70-4,300 rpm, Variable speeds
Quill ( Spindle ) diameter3-3/8”
Quill ( Spindle ) travel5”
Ram travel12”
Table T-slot size5/8” x 3 slots
Head Swivel, R/H , L/H90 degrees
Dimensions63" x 57" x 83"
Weight2,650 lbs.
