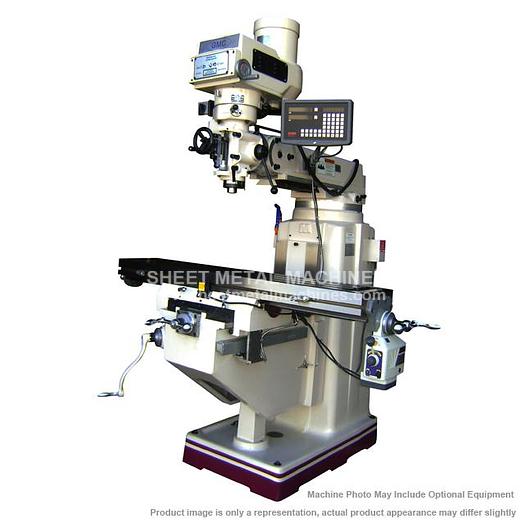

GMC Machine Tools Manual Vertical Knee Mill Package GMM-1054VPKG

GMC Machine Tools Manual Vertical Knee Mill Package GMM-1054VPKG

$9,950 SHIPPING $500

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer GMC Manual Vertical Knee Mill Package GMM-1054VPKG Taiwan mill “Meehanite” casting Turcite “B” coating on X/Y ways like CNC mills ISO 9001 certified Mechanical variable spindle speeds from 70-4,300 rpm Heavy duty 3 HP AC spindle motor, 3 phase (for ideal of tapping jobs, we strongly recommend to take 3 phase mill with phase converter) Heavy Duty high grade castings Hardened & ground ways, square ways on knee and column Hardened & ground table and Ground table T-slots Precision ground ACME Leadscrews Chromed ground quill (spindle) Chromed dials Adjustable ways Hand brake on mill head Tilting & rotating head Manual or automatic quill feeds 0.0015” , 0.003”, 0.006” per spindle revolution One shot lube system Front and rear rubber chip guards, and (1) manual draw bar Tool box kit and leveling pads Power source 220V OR 440V, 3 phase GMM-1054VPKG, 10” x 54” table, vari spd, w/DRO & power feed .. GMM-1054V, 10” x 54” table, vari spd, without DRO & power feed.. GMM-1054F, 10”X54” table EVS with inverter, 5,00rpm EQUIPPED WITH: Free SINO DRO (GMM-1054VPKG) Free table power feed X (GMM-1054VPKG) One shot lube Draw bar Rubber way covers Tool box

OPTIONAL ITEMS:

PART #OEM-1054 SINO DRO, 2 AXIS GALSS SCALE 12X36", 0.0001", Free Install: $850

PART #NW-1054 NEWALL DRO, 2 AXIS, 12X36", 0.0002", Free Install: $2,350

PART #PF-180X Power feed, Taiwan, x axis, 110V: $395

PART #PF-180Y Power feed, Taiwan, y axis, 110V: $495

PART #PF-180Z Power feed, Taiwan, z axis, KEE UP/DOWN,100V: $495

PART #HQR8 Power air draw bar, High Quality(USA): $750

PART #900-0021 6” vise: $295

Specifications

ManufacturerGMC Machine Tools
ModelGMM-1054VPKG
ConditionNew
Stock NumberGMM-1054VPKG
Table Size10” x 54”
Table Load Capacity750 lbs
X Axis Travel36-1/2"
X Travel with power feed33-1/2"
Y Axis Travel16"
Z Axis Travel16"
Spindle Taper TypeR 8
AC Spindle Motor3 HP, 220V or 440V, 3 ph
Variable Spindle speeds70-4,300 rpm
Quill ( Spindle ) diameter3-3/8”
Quill ( Spindle ) travel5”
Ram travel18”
Table T-slot size5/8” x 3 slots
Head Swivel, R/H , L/H90 degree
Net Weight3,250 lbs
