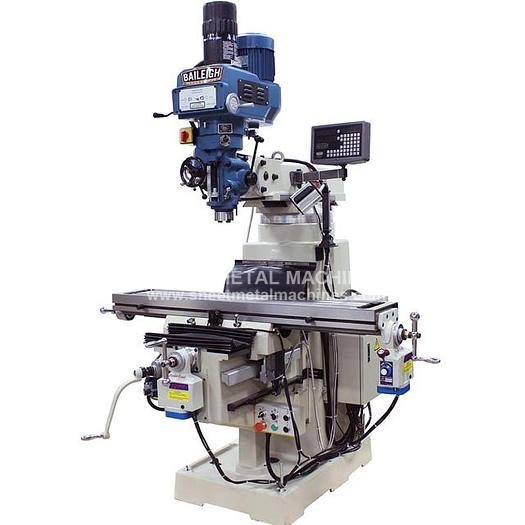

BAILEIGH Variable Speed Vertical Mill VM-1054E-VS

BAILEIGH Variable Speed Vertical Mill VM-1054E-VS


orCall 386-304-3720


Please note: many products ship straight from manufacturer BAILEIGH Variable Speed Vertical Mill VM-1054E-VS The VM-1054E-VS is a variable speed milling machine that runs from 60 to 4,200 rpm. By selecting the right speed tooling life is lengthened and cut quality improves, both of which save money. Baileigh Industrial selected an ISO 40 taper for its spindle to help improve performance as well. A larger spindle is stronger and has tighter tolerances over a longer period of time. Rigidity is also very important on a mill that is why Baileigh Industrial went with only the best castings to make the base and frame. The stronger you make he platform the better the cutting is. Table size is another very important component when deciding which milling machine to buy and VM-1054E-VS has a 10” x 54” table that has been hardened, ground, polished, and coated with a special coating called Turcite B to extend life and help eliminate corrosion. All three axis are powered on the VM-1054E-VS making it easy on the operator. Another nice feature is the two axis digital readout that comes standard. This digital readout is accurate to 1/10 of 1 thousandth of an inch. A flood coolant system, air draw bar, and central lubrication system are all factory installed on the VM-1054E-VS.

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



ManufacturerBaileigh Industrial
Stock NumberBA9-1020696
Table Size10" x 54" (254 x 1371mm)
SpindleISO 40
Spindle Speeds60~4,200RPM
Quill Dia.3-11/32" (85mm)
Spindle Bearings7207
Spindle Travel5" (127mm)
Table to Spindle Nose (Min.)4" (102mm)
Table to Spindle Nose (Max.)17" (432mm)
Knee Travel13" (330mm)
X Travel32" (813mm) Power feed
Y Travel13-3/4" (350mm) Power feed
Head Tilt (L&R)90°
Head Pivot (F&B)45°
Turret Rotation (CW & CCW)165°
Ram Travel20" (508mm)
Quill Auto Feed Speeds.003" .0015" .006"
T-Slots5/8" (16mm)
Coolant Capacity (Max)5.3 Gallons
Work LightLED
Horsepower3 HP
Voltage220V, 60hz, 1ph
Shipping Dimensions60" x 60" x 87"
Shipping Weight3,000 lbs
