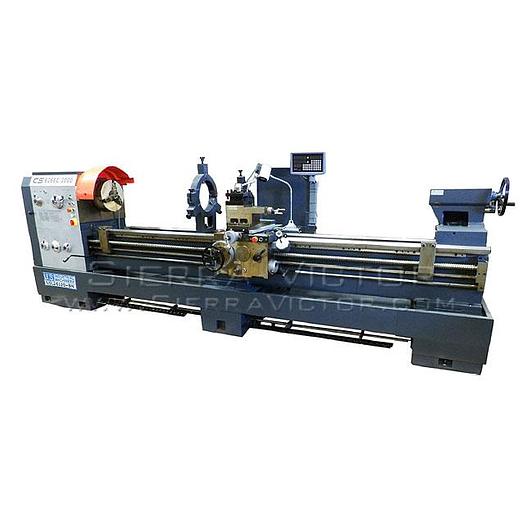

U.S. INDUSTRIAL Precision Geared Head Engine Lathe USL 26120BH-KIT

U.S. INDUSTRIAL Precision Geared Head Engine Lathe USL 26120BH-KIT

$45,295 Call for Freight Specials

orCall 386-304-3720


Please note: many products ship straight from manufacturer U.S. INDUSTRIAL 26" x 120" Precision Geared Head Engine Lathe USL 26120BH-KIT

  • This precision, heavy duty geared head engine lathe incorporates hardened and precision ground bedways on longitudinal and cross ways, and wide, precision ground gears. It has a gap-bed design, feed-rod/lead screw safety interlock system, weight bearing tailstock and forward/reverse levers at both the aprons and the head stock
  • As with all U.S. Industrial lathes, it comes with a plethora of standard accessories, 3 and 4-jaw chucks, follower and steady rests, 4-way rapid travel, work lamp, a coolant system and an operator/service manual.
  • Spindle bore will pass 4”.


  • 12” 3-jaw chuck. Universal, self-centering with an American standard tongue and groove top Jaws.
  • 16” 4-jaw independent chuck
  • Steady rest
  • 4-way toolpost
  • Thread Dial
  • Work lamp
  • Flood coolant system
  • Sino 2-axis digital readout inch/metric (installed)
  • Inch reading dials on Apron, Cross-Slide and compound
  • Manual with test certificate
  • 25” Face Plate & Dog Plate
  • Foot brake with microswitch and brake
  • Follow rest
  • 4-way rapid travel
  • Safety chuck shield
  • Taper attachment (installed)
  • Large spindle bore to pass 4”
  • Full length backsplash
  • Slide out chip pans


  • Quick change toolpost kit with holders
  • ISO Cutting Tool Package

  • QUICK CHANGE TOOL POST OPTION – (Replaces standard four-way tool post)
  • Note: We use the wedge style, #333 for our Lathes. This comes with Part off holder, knurling holder, boring bar holder, and two ¾” SS holders
  • This is custom installation and not available after machine ships. Must be installed on lathe at time of order, prior to shipping.
  • Extra holders are $ 75.00 each.

  • Cutting Tool Package for U.S. Industrial Lathes:
  • This optional cutting tool package is designed to fit our QUICK CHANGE TOOLPOST option. It is not for the standard 4-way toolpost.
  • Tools included below are for:
  • Rough and medium finishing of the part OD
  • Left- and right-hand tools for working left and right hand shoulders
  • Tools for threading OD and ID
  • Part off tools
  • Fine finish of the part ID
  • Tools for boring the ID and more...

  • List of carbide cutting tools in KIT for US INDUSTRIAL LATHE: (ISO tools are imports.)
  • Note: Tools for 13”, 16”, 20” and 26” Lathes will be ¾” square shank
  • Note: Customer MUST purchase option, OUR QC Toolpost set for install prior to shipping:
  1. MW LN-R, ¾” square, triangle insert, right hand
  2. MW LN-L, ¾” square, triangle insert, left hand.
  3. Box of 10 W NMG inserts for above
  4. MCLN-R, ¾” square, diamond insert, right hand
  5. MCLN-L, ¾” square, diamond insert, left hand
  6. Box of 10 CNMG inserts for above
  7. MVJN-R, ¾” square, diamond insert, fine finish, right hand
  8. MVJN-L, ¾” square, diamond insert, fine finish, left hand
  9. Box of 10 VNMG inserts, 1/64” nose radius
  10. SER-0750-SET, ¾” square, for threading OD, with inserts (This is a KIT and includes threading inserts.)
  11. SIR-0750-SET, ¾” round, for threading ID, with inserts (This is a KIT and includes threading inserts.)
  12. SCLCR-SET, Boring bars, .315”, 3/8”, ½”, 5/8”, ¾” bars, with inserts (This is a KIT and includes inserts.)
  13. RH-MCLN, Boring bar, 1” diameter, 12” long
  14. Use inserts in Item No. 6, CNMG
  15. HSS Blade for part-off holder, high speed steel
  16. Block, blade and 10 self-lock carbide parting/grooving inserts
  17. Arbor and key chuck for tailstock
  18. Live center for tailstock
  19. Semi-synthetic coolant concentrate, 1 gallon

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



ManufacturerUS Industrial
ModelUSL 26120BH-KIT
Stock NumberUSL 26120BH-KIT
Swing over bedways26.0"
Swing over cross slide16.53"
Swing over gap34.25"
Distance between centers118"
Spindle bore4.134"
Spindle speeds range - RPM36 to 1600
Longitudinal feed range - IPR.0023 to .0937
Cross feed range - IPR.0011 to .0404
Metric Threading range1 to 14mm
Inch Threading range -TPI2 to 28
Tailstock taperNo. 5 MT
Spindle power10 HP
Power requirement220/440V, 3ph
3-jaw chuck - diameter12"
4-jaw chuck - diameter16"
Faceplate - diameter25"
4-way toolpost is included<1-1/4" square
Sino 2-axis digital readoutIncluded
Steady restIncluded
Follow restIncluded
Micrometer carriage stop
Thread dialIncluded
Work lampIncluded
Taper attachmentIncluded
Rear splash guardIncluded
Chuck guardIncluded
Flood coolant systemIncluded
Slide out chip traysIncluded
Crated Dimensions- LxWxH183" x 40" x 55"
Gross Weight8,500 lbs.
