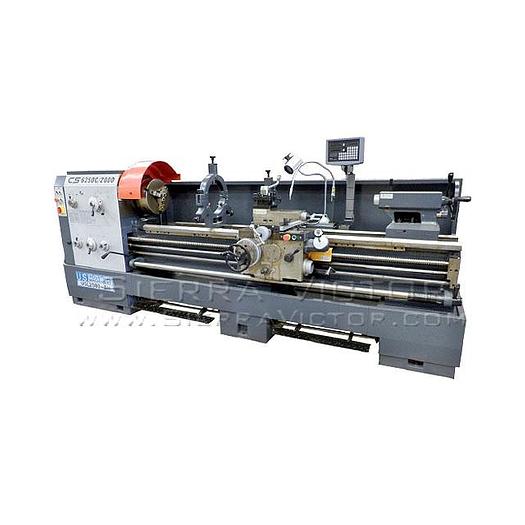

U.S. INDUSTRIAL Precision Geared Head Engine Lathe USL 2080BH-KIT

Please note: many products ship straight from manufacturer U.S. INDUSTRIAL 20" x 80" Precision Geared Head Engine Lathe USL 2080BH-KIT

• This precision, heavy duty geared head engine lathe incorporates hardened and precision ground bedways on longitudinal and cross ways, and wide, precision ground gears. It has a gap-bed design, feed-rod/lead screw safety interlock system, weight bearing tailstock and forward/reverse levers at both the aprons and the head stock.
• As with all U.S. Industrial lathes, it comes with a plethora of standard accessories, 3 and 4-jaw chucks, follower and steady rests, 4-way rapid travel, work lamp, a coolant system and an operator/service manual
• Spindle bore will pass 4”.

STANDARD EQUIPMENT:

• 12” 3-jaw chuck. Universal, self-centering with an American standard tongue and groove top Jaws.
• 16” 4-jaw independent chuck
• Steady rest
• 4-way toolpost
• Thread Dial
• Work lamp
• Flood coolant system
• Sino 2-axis digital readout inch/metric (installed)
• Inch reading dials on Apron, Cross-Slide and compound
• Manual with test certificate
• 25” Face Plate & Dog Plate
• Foot brake with microswitch and brake
• Follow rest
• 4-way rapid travel
• Safety chuck shield
• Taper attachment (installed)
• Large spindle bore to pass 4”
• Full length backsplash
• Slide out chip pans
• Note: Free Multi-position carriage stop

OPTIONAL ITEMS - CALL FOR PRICE:

• Quick change toolpost kit with holders
• ISO Cutting Tool Package

• QUICK CHANGE TOOL POST OPTION – (Replaces standard four-way tool post)
• ONE – NEW QUICK CHANGE TOOLPOST WITH FIVE HOLDERS, FOR FACTORY ONLY. INSTALL ON USL SERIES LATHES
• Note: We use the wedge style, #333 for our Lathes. This comes with Part off holder, knurling holder, boring bar holder, and two ¾” SS holders
• This is custom installation and not available after machine ships. Must be installed on lathe at time of order, prior to shipping.
• Extra holders are $ 75.00 each.

• Cutting Tool Package for U.S. Industrial Lathes:
• This optional cutting tool package is designed to fit our QUICK CHANGE TOOLPOST option. It is not for the standard 4-way toolpost.
• Tools included below are for:
• Rough and medium finishing of the part OD
• Left- and right-hand tools for working left and right hand shoulders
• Tools for threading OD and ID
• Part off tools
• Fine finish of the part ID
• Tools for boring the ID and more...

• List of carbide cutting tools in KIT for US INDUSTRIAL LATHE: (ISO tools are imports.)
• Note: Tools for 13”, 16”, 20” and 26” Lathes will be ¾” square shank
• Note: Customer MUST purchase option, OUR QC Toolpost set for install prior to shipping:

1. MW LN-R, ¾” square, triangle insert, right hand
2. MW LN-L, ¾” square, triangle insert, left hand.
3. Box of 10 W NMG inserts for above
4. MCLN-R, ¾” square, diamond insert, right hand
5. MCLN-L, ¾” square, diamond insert, left hand
6. Box of 10 CNMG inserts for above
7. MVJN-R, ¾” square, diamond insert, fine finish, right hand
8. MVJN-L, ¾” square, diamond insert, fine finish, left hand
9. Box of 10 VNMG inserts, 1/64” nose radius
10. SER-0750-SET, ¾” square, for threading OD, with inserts (This is a KIT and includes threading inserts.)
11. SIR-0750-SET, ¾” round, for threading ID, with inserts (This is a KIT and includes threading inserts.)
12. SCLCR-SET, Boring bars, .315”, 3/8”, ½”, 5/8”, ¾” bars, with inserts (This is a KIT and includes inserts.)
13. RH-MCLN, Boring bar, 1” diameter, 12” long
14. Use inserts in Item No. 6, CNMG
15. HSS Blade for part-off holder, high speed steel
16. Block, blade and 10 self-lock carbide parting/grooving inserts
17. Arbor and key chuck for tailstock
18. Live center for tailstock
19. Semi-synthetic coolant concentrate, 1 gallon

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts
