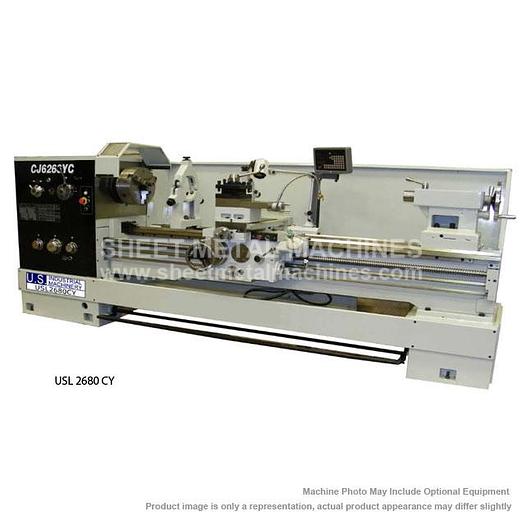

U.S. INDUSTRIAL Precision Geared Head Engine Lathe USL 2680 CY-KIT
U.S. INDUSTRIAL Precision Geared Head Engine Lathe USL 2680 CY-KIT
$28,990
Description
Please note: many products ship straight from manufacturer U.S. INDUSTRIAL Precision Geared Head Engine Lathe USL 2680 CY-KIT ITEM: 26" x 80" Precision Geared Head Engine Lathe MANUFACTURER: U.S. INDUSTRIAL MODEL: USL 2680 CY-KIT This precision, heavy duty geared head engine lathe incorporates hardenend and precision ground bedways on longitudinal and cross ways, and wide, precision ground gears. It has a gap-bed design, feed-rod/lead screw safety interlock system, weight bearing tailstock and forward/reverse levers at both the aprons and the head stock. As with all U.S. Industrial lathes, it comes with a plethora of standard accessories, 3 and 4-jaw chucks, follwer and steady rests, 4-way rapid travel, work lamp, a coolant system and an operator/service manual. STANDARD EQUIPMENT: 12" 3-Jaw Chuck. Universal, self-centering 16" 4-Jaw Independent Chuck 17" Face Plate & Dog Plate Safety Chuck shield Stead Rest Follow Rest 4-way tool post Micrometer carriage stop Work lamp Splash Guard Flood Coolant system Thread Dial Sino 2-Axis Digital Readout inch/metric (installed) Inch reading dials on apron, cross-slide and compound Foot brake with microswitch and brake 4-way rapid travel Taper Attachment (installed) Large spindle bore to pass 4" Full length backsplash Slide out chip pans Manual with test certificate CALL FOR PRICE: ITEM Quick change tool post with holders Iscar Cutting Tool package
Specifications
| Manufacturer | US Industrial |
| Model | USL 2680 CY-KIT |
| Condition | New |
| Stock Number | USL 2680 CY-KIT |
| Swing Over Bed | 25.98” (660mm) |
| Swing Over Cross Slide | 16.53” (420mm) |
| Swing Over Gap | 34.25” (870mm) |
| Length of Gap | 9.44” (240mm) |
| Maximum length of workpiece with 3-jaw chuck | 78.74” (2000mm) |
| Maximum Turning Length | 76.77” (1950mm) |
| Spindle Bore | 4.134” (105mm) |
| Spindle Type | D1-8 Camlock |
| 12 Spindle Speeds | 36 to 1600 RPM |
| 65 Longitudinal Feeds | .0023 to .0937 IPR |
| 65 Cross Feeds | .0011 to .0404 IPR |
| 22 Metric Threads | 1 to 14mm |
| 25 Inch Threads | 2 to 28 TPI |
| 18 Module Threads | 0.5 to 7mm |
| 24 Diametral Pitch Threads | 4 to 56 DP |
| Compound Rest Travel | 5.709” (145mm) |
| Cross-Slide Travel | 12.205” (310mm) |
| Tailstock Taper | No. 5 Morse Taper |
| Tailstock Spindle Travel | 5.906” (150mm) |
| Tailstock Spindle Diameter | 2.953” (75mm) |
| Main Motor HP | 12 HP (9 kw) 220V or 440V, 3-phase |
| Rapid Feed Motor | 0.33 HP |
| Coolant Pump Motor | 60 watts, 5.5 gallons per minute |
| Lathe Gross Weight | 7,500 lbs. |
| Dimensions | 159” long, 40” wide, 55” tall |
