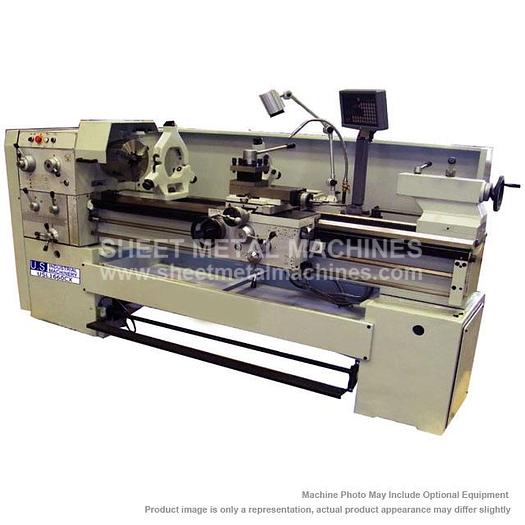

U.S. INDUSTRIAL Precision Geared Head Engine Lathe USL 1660 CX-KIT

U.S. INDUSTRIAL Precision Geared Head Engine Lathe USL 1660 CX-KIT

$21,990

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer U.S. INDUSTRIAL 16 " x 60" Precision Geared Head Engine Lathe USL 1660 CX-KIT This precision, heavy duty geared head engine lathe incorporates hardened and precision ground bedways on longitudinal and cross ways, and wide, precision ground gears. It has a gap-bed design, feed-rod/lead screw safety interlock system, weight bearing tailstock and forward/reverse levers at both the aprons and the head stock. As with all U.S. Industrial lathes, it comes with a plethora of standard accessories, 3 and 4-jaw chucks, followers and steady rests, work lamp, coolant system and an operator/service manual. This model available with or without digital readout and taper attachment.

STANDARD EQUIPMENT: 10" 3-Jaw Chuck . Universal, Self-centering 12" 4-Jaw Chuck independent chuck 15" Face Plate Dog plate Full length backsplash Flood Coolant system Work lamp Follow Rest Steady Rest Thread Dial Micrometer carriage stop 4-way toolpost Foot brake with microswitch and brake Safety chuck shield Taper attachment - installed (USL 1660 CX-KIT)

Sino 2-axis digital readout inch/metric - installed (USL 1660 CX-KIT) Large spindle bore to pass 3" Slide out chip pan Manual with test certificate Inch/Metric reading dials on apron, cross-slide and compound OPTIONAL ITEMS - CALL FOR PRICE: Quick change tool post with holders Iscar Cutting Tool package

Specifications

ManufacturerUS Industrial
ModelUSL 1660 CX-KIT
ConditionNew
Stock NumberUSL 1660 CX-KIT
Swing Over Bed16.53” (420mm)
Swing Over Cross Slide8.85” (225mm)
Swing Over Gap21.65” (550mm)
Length of Gap10.23” (260mm)
Maximum Workpiece Length59.05” (1500mm)
Spindle Bore3.15" (80mm)
Spindle TypeD1-8
15 Spindle Speeds24 - 1,600 RPM
66 Longitudinal Feeds.0027 to .15 IPR
66 Cross feeds.00135 to .075 IPR
66 Metric Threads0.5 to 28mm
66 Inch Threads1 to 56 TPI
33 Module Threads0.5 to 3.5mm
33 Diametral Pitch Threads8 to 56 DP
Compound Rest Travel5.119” (130mm)
Cross-slide travel12” (305mm)
Tailstock taperNo. 5 Morse Taper
Tailstock Spindle Travel4.72” (120mm)
Main Motor10 HP (7.5 kw) 220V or 440V, 3-phase
Coolant Pump MotorFractional HP
Dimensions120” long, 48” wide, 60” tall
Lathe Gross Weight4,400 lbs.
