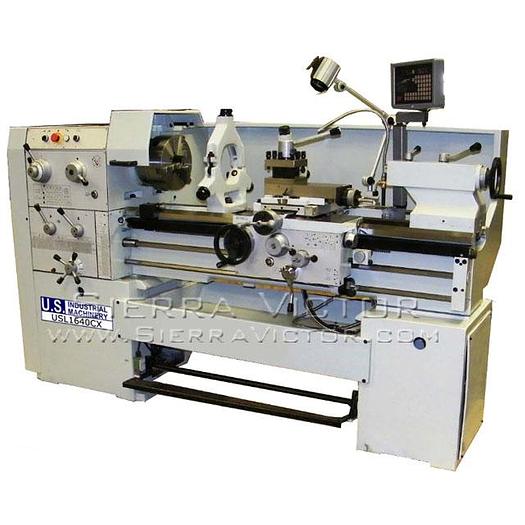

Please note: many products ship straight from manufacturer U.S. INDUSTRIAL 16" x 40" Precision Geared Head Gap Bed Lathe USL 1640 CX-KIT

  • This precision, heavy duty geared head engine lathe incorporates hardened and precision ground bedways on longitudinal and cross ways, and wide, precision ground gears. It has a gap-bed design, feed-rod/lead screw safety interlock system, weight bearing tailstock and forward/reverse levers at both the aprons and the head stock.
  • Spindle bore will pass 3”.


EQUIPPED WITH:

  • 10" 3-Jaw Chuck . Universal, Self-centering
  • 12" 4-Jaw Chuck independent chuck
  • 15" Face Plate
  • Dog plate
  • Full length backsplash
  • Flood Coolant system
  • Work lamp
  • Follower Rest
  • Steady Rest
  • Thread Dial
  • Micrometer carriage stop
  • 4-way toolpost
  • Foot brake with micro switch and brake
  • Safety chuck shield
  • Taper attachment (installed)
  • Sino 2-axis digital readout inch/metric (installed)
  • Large spindle bore to pass 3"
  • Slide out chip pan
  • Manual with test certificate
  • Inch/Metric reading dials on apron, cross-slide and compound

OPTIONAL ITEMS - CALL FOR PRICE:

  • Quick change toolpost kit with holders: $995.00
  • ISO Cutting Tool Package: $2,995.00


  • QUICK CHANGE TOOL POST OPTION – (Replaces standard four-way tool post)
  • ONE – NEW QUICK CHANGE TOOLPOST WITH FIVE HOLDERS, FOR FACTORY ONLY. INSTALL ON USL SERIES LATHES
  • Note: We use the wedge style, #333 for our Lathes. This comes with Part off holder, knurling holder, boring bar holder, and two ¾” SS holders
  • This is custom installation and not available after machine ships. Must be installed on lathe at time of order, prior to shipping.
  • Extra holders are $ 75.00 each.


  • Cutting Tool Package for U.S. Industrial Lathes:
  • This optional cutting tool package is designed to fit our QUICK CHANGE TOOLPOST option. It is not for the standard 4-way toolpost.
  • Tools included below are for:
  • Rough and medium finishing of the part OD
  • Left- and right-hand tools for working left and right hand shoulders
  • Tools for threading OD and ID
  • Part off tools
  • Fine finish of the part ID
  • Tools for boring the ID and more...


  • List of carbide cutting tools in KIT for US INDUSTRIAL LATHE: (ISO tools are imports.)
  • Note: Tools for 13”, 16”, 20” and 26” Lathes will be ¾” square shank
  • Note: Customer MUST purchase option, OUR QC Toolpost set for install prior to shipping:
  1. MW LN-R, ¾” square, triangle insert, right hand
  2. MW LN-L, ¾” square, triangle insert, left hand.
  3. Box of 10 W NMG inserts for above
  4. MCLN-R, ¾” square, diamond insert, right hand
  5. MCLN-L, ¾” square, diamond insert, left hand
  6. Box of 10 CNMG inserts for above
  7. MVJN-R, ¾” square, diamond insert, fine finish, right hand
  8. MVJN-L, ¾” square, diamond insert, fine finish, left hand
  9. Box of 10 VNMG inserts, 1/64” nose radius
  10. SER-0750-SET, ¾” square, for threading OD, with inserts (This is a KIT and includes threading inserts.)
  11. SIR-0750-SET, ¾” round, for threading ID, with inserts (This is a KIT and includes threading inserts.)
  12. SCLCR-SET, Boring bars, .315”, 3/8”, ½”, 5/8”, ¾” bars, with inserts (This is a KIT and includes inserts.)
  13. RH-MCLN, Boring bar, 1” diameter, 12” long
  14. Use inserts in Item No. 6, CNMG
  15. HSS Blade for part-off holder, high speed steel
  16. Block, blade and 10 self-lock carbide parting/grooving inserts
  17. Arbor and key chuck for tailstock
  18. Live center for tailstock
  19. Semi-synthetic coolant concentrate, 1 gallon


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerUS Industrial
ModelUSL 1640 CX-KIT
ConditionNew
Stock NumberUSL 1640 CX-KIT
Swing over bedways16.53"
Swing over cross slide8.85"
Swing over gap21.65"
Distance between centers39.37"
Spindle bore3.15"
Spindle speeds range - RPM24 to 1600
Longitudinal feed range - IPR.0027 to .150
Cross feed range - IPR.00135 to .075
Metric Threading range.5 to 28mm
Inch Threading range -TPI1 to 56
Spindle power10 HP
Power requirement220/440V, 3ph
3-jaw chuck - diameter10"
4-jaw chuck - diameter12"
Faceplate - diameter15"
4-way toolpost is included<1" square
Sino 2-axis digital readoutIncluded
Steady restIncluded
Follow restIncluded
Micrometer carriage stopIncluded
Thread dialIncluded
Work lampIncluded
Taper attachmentIncluded
Rear splash guardIncluded
Chuck guardIncluded
Flood coolant systemIncluded
Slide out chip traysIncluded
Crated Dimensions- LxWxH100" x 48" x 60"
Gross Weight3,900 lbs.
