PALMGREN Combination Bench Engine Lathe and Gear Head Mill 9684520

PALMGREN Combination Bench Engine Lathe and Gear Head Mill 9684520

$5,107

orCall 386-304-3720

Description

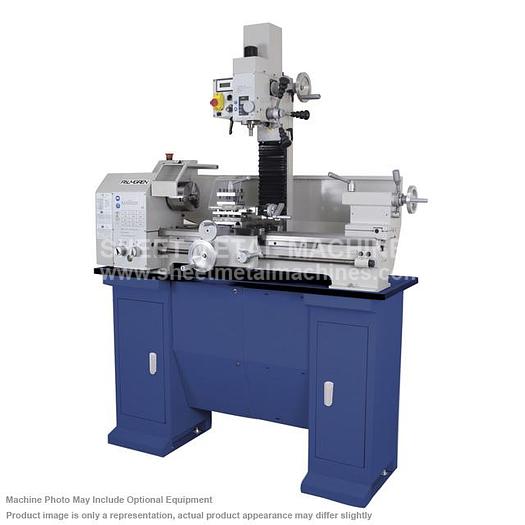

Please note: many products ship straight from manufacturer PALMGREN Combination Bench Engine Lathe and Gear Head Mill 9684520 ITEM: 11" x 27" Combination Bench Engine Lathe and Gear Head Mill MANUFACTURER: PALMGREN PART# 9684520 Palmgren’s combination 11˝ bench lathe engine lathe and gear head mill delivers the precision, power and versatility to handle a wide range of turning, milling and drilling operations normally found in much larger machines. Heavy cast iron construction, smooth power transmission with precision thrust and ball bearings in the head stock and spindles, hardened and ground ways all designed to go give you years of trouble-free, precise turning, milling and hole making machining. Built and inspected to the DIN 8606 toolmakers precision lathe standard assuring accuracy and consistent performance. The all gear drive transmission on the mill delivers full power at any speed driving the cutting tools at nearly 100% of available horsepower and torque. With such a wide range of versatility and features, this all purpose combination lathe/mill is one of the most function manual machine centers that can operate in all types and sizes of shops. STANDARD FEATURES: LATHE Trapezoid machine tool spindle Dual P5 tapper roller bearings on spindle Prismatic bed of solid aged cast iron – hardened to HRO 42-52 for long life Fast easy feed speed and direction changes with front mounted selector handles Feed gear box is constructed of helical steel gears running in an oil bath Feed lead screw is supported and runs on two bearings Precision machined slide with adjustable hand wheels with 0.002˝ / 0.001˝ scales Tailstock with adjustable precision scale of 0.02 mm / 0.0008˝ 3 Jaw lathe chuck 4 Way tool post Safety lathe chuck and tool post guards Centers Chip tray and splash guard STANDARD FEATURES: MILL Electronic variable speed All steel gear drive train Built-in work light Box column with hardened, ground and hand scraped ways 2 MT machine tools spindle with draw bar Precision machine tool spindle with guaranteed concentricity of .0005˝ at the spindle nose Drill chuck and arbor PART # ITEM 9684505 Heavy duty steel floor stand with hinged doors for added storage: $554 9680170 No. 2 MT round collet chuck set, 5 collets 1/8˝ to 7/16˝ with wooden storage box: $116

Specifications

ManufacturerPALMGREN
Model9684520
ConditionNew
Stock Number9684520
Height of Centers5.51"
Distance Between Centers11.02"
Turning Diameter (max)27.56"
Number of Speeds6
Spindle TaperMT4
Spindle Hole1.02"
Chuck Size5"
Top Slide Travel2.43"
Compound Slide Travel5.60"
Distance Between Center and Compound Table3.49"
Tailstock Sleeve Travel4.13"
Longitudinal Feed0.002" - 0.004" - 0.008"
Pitch - (metric/inches)8 - 56"
Length26.38"
Depth27.56"
4 Position tool Post Height1/2"
Weight227.08 lbs.
Drilling Capacity0.63"
Milling Capacity of end-mill cutter0.79"
Capacity of Inserted Tooth Cutter2.48"
Working Radius7.28"
Spindle Travel1.97"
Gear Stages2
Low Range100 to 1500 RPM
High Range200 to 3000 RPM
Z-Axis Travel14.57"
Table Width7.09"
Y-Axis Travel6.89"
X-Axis Travel11.02"
T-Slot size / Distance / Quantity0.47 in / 2.48 in / 3
Width21.65"
