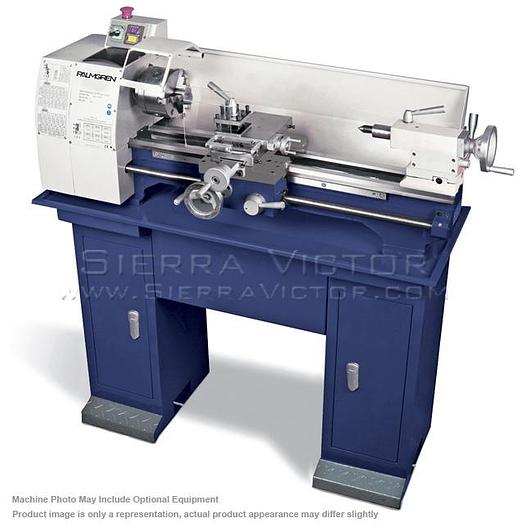

PALMGREN Bench Engine Lathe 9684500

PALMGREN Bench Engine Lathe 9684500


orCall 386-304-3720


Please note: many products ship straight from manufacturer PALMGREN Bench Engine Lathe 9684500 Palmgren’s 7˝ bench engine lathe delivers the precision, power and versatility to handle a wide range of turning operations normally found in much larger machines. Heavy cast iron construction, smooth power transmission, precision thrust and ball bearings in the head stock and spindle, hardened and ground ways all designed to give you years of trouble-free, precise turning. Built and inspected to the DIN 8606 toolmakers precision lathe standard assuring accuracy and consistent performance. The bench lathe is the right choice for turning small metal parts and is used in proto type shops, tool rooms, fabrication shops, maintenance shops, jewelry manufacturing and by home and hobby machinists. STANDARD EQUIPMENT: Machine tool spindle Dual P5 tapper roller bearings on spindle Prismatic bed of solid aged cast iron – hardened to HRO 42-52 for long life Feed lead screw is supported and runs on two bearings Trapezoid machine tool spindle Precision machined slide with adjustable hand wheels with 0.002˝ / 0.001˝ scales Tailstock with adjustable precision scale of 0.02 mm / 0.001˝ 3 Jaw lathe chuck 4 Way tool post Safety lathe chuck and tool post guards Centers Chip tray and splash guard ITEM: 7" x 12" Bench Engine Lathe MANUFACTURER: PALMGREN PART# 9684500 9684501 - Steel floor stand for 9684500 7" Lathe: $335 9684502 - Follow rest for 9684500 7" lathe: $47.50 9684503 - Steady rest for 9684500 7" lathe: $52.50


Stock Number9684500
Center Height3.54"
Distance Between Centers11.81"
Turning Diameter (max)7.09"
Max Swing Over Compound Slide4.33"
Bed Width3.94"
Number of Steps2
Spindle TaperMT3
Spindle Hole0.83"
Chuck Size0.79"
Compound Slide Travel2.95"
Tailstock Sleeve Travel2.56"
Longitudinal Feed0.002" & .004"
Pitch10 - 44"
Tool Holder Seat Height0.31"
Weight121.25 lbs.
