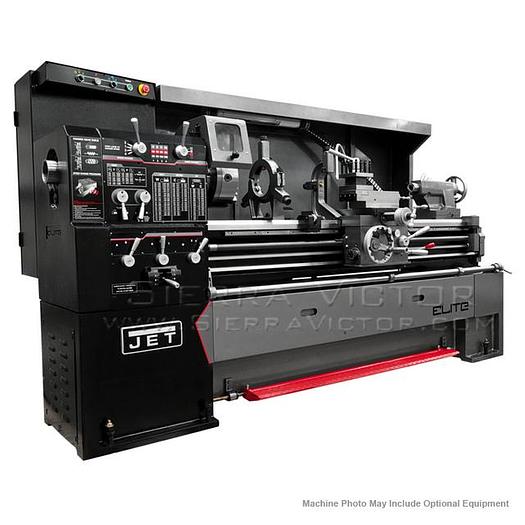

JET ELITE EGH-1740 Elite 17x40 Large Spindle Bore Geared Head Lathe 892100

JET ELITE EGH-1740 Elite 17x40 Large Spindle Bore Geared Head Lathe 892100

$26,999

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET ELITE EGH-1740, Elite 17x40 Large Spindle Bore Geared Head Lathe, 892100 Combining the durability and strength of Meehanite castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite. Fully lit with CNC-style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant. Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004" Hardened and ground gears in headstock reduce vibration and deflection Wider bedway absorbs vibration Turcite-B coating between bed and carriage provides friction free motion in all linear directions One-shot lubrication in carriage reduces maintenance Overload clutch at feed shaft prevents the carriage from crashing into the chuck Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock Certified Meehanite castings retain their tolerances and remain rigid through many years of machining For added safety, the motor and electrics follow strict guidelines and electrical requirements to be certified by CSA Group. STANDARD EQUIPMENT: 10” 3-Jaw chuck Backplate for 10” Chuck Steady rest- ball bearing Follow rest 4-Way tool post 3-Position carriage stop Chuck guard Micro-Carriage bed stop Threading dial ITEM: 17" x 40" Geared Head Lathe MANUFACTURER: JET ELITE MODEL: EGH-1740 PART# 892100

Specifications

ManufacturerElite
ModelEGH-1740
ConditionNew
Stock Number892100
STOCK#892100
Swing over bed17"
Swing over cross slide11"
Swing through gap24-1/2"
Length of gap7-2/3"
Distance between centers40"
Spindle bore3-1/8"
Spindle MountD1-6
Spindle taper with sleeveMT-5
Number of spindle speeds12
Range of spindle speeds (RPM)36 - 1,800
Range of Longitudinal feeds (IPR)0.0015 - 0.04
Range of cross feeds (IPR)0.00075 - 0.02
Number of inch threads45
Range of inch threads (TPI)2 - 72
Number of metric threads39
Range of metric threads0.2 - 14
Max Tool Size1" x 1"
Compound slide travel6-2/7"
Cross slide travel9-1/4"
Tailstock spindle travel5"
Taper in tailstock spindleMT-4
Follow rest capacity1/2" - 3"
Steady rest capacity3/8" - 6-3/4"
Width of bed12"
Motor7-1/2 HP, 230/460V, 3 Ph
Amperage Draw @ 230V 3Ph22
Amperage Draw @ 460V 3Ph11
Prewired230V
Coolant pump motor1/8 HP
Weight (lbs.)3,747
Overall Dimensions (LxWxH)94" x 44" x 68"
