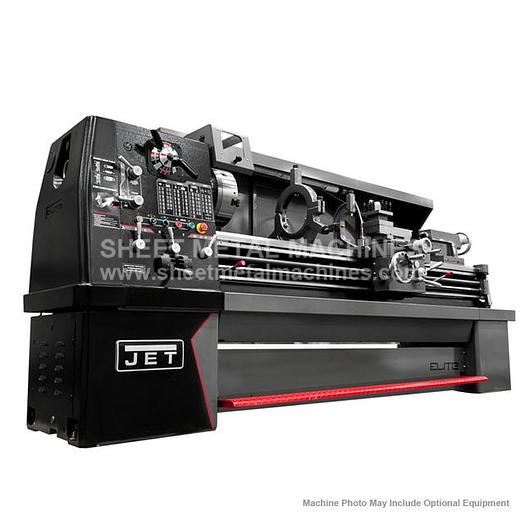

JET ELITE EGH-1880 Elite 18x80 Large Spindle Bore Clutch Lathe 892200

JET ELITE EGH-1880 Elite 18x80 Large Spindle Bore Clutch Lathe 892200

$41,199

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET ELITE EGH-1880, Elite 18x80 Large Spindle Bore Clutch Lathe Clutch-style geared head lathes are signature machines within the Elite lathe lineup. Engineered to meet world-class tolerances for spindle runout, longitudinal and transverse bed alignment, and bed-way parallelism. Take Elite performance to a whole new level. Fully lit with CNC-style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant. Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004" Hardened and ground gears in headstock reduce vibration and deflection Wider bedway absorbs vibration Turcite-B coating between bed and carriage provides friction free motion in all linear directions One-shot lubrication in carriage reduces maintenance Overload clutch at feed shaft prevents the carriage from crashing into the chuck Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock Hardened and ground bedways provide accurate longitudinal movements Front facing chip pan allows easy chip removal from the front of the machine Certified Meehanite castings retain thier tolerances and remain rigid through many years of machining Following strict guidelines , CSA/UL electrics have been added for increased safety STANDARD EQUIPMENT: 12" 3-Jaw chuck Backplate for 12" Chuck Steady rest-ball bearing Follw rest 4-Way tool post 4-Position carriage stop Chuck guard Micro-Carriage bed stop Threading dial ITEM: 18" x 80" Clutch Geared Head Lathe MANUFACTURER: JET ELITE MODEL: EGH-1880 PART# 892200

Specifications

ManufacturerElite
ModelEGH-1880
ConditionNew
Stock Number892200
STOCK#892200
Swing over bed18"
Swing over cross slide11"
Swing through gap28"
Length of gap9-5/6"
Distance between centers80"
Spindle bore3-1/8"
Spindle MountD1-8
Spindle taper with sleeveMT7
Number of spindle speeds16
Range of spindle speeds (RPM)20-1,600
Range of Longitudinal feeds (IPR)0.0015 - 0.04
Range of cross feeds (IPR)0.00075 - 0.02
Number of inch threads38
Range of inch threads (TPI)2 - 72
Number of metric threads40
Range of metric threads0.4 - 14
Number of diametral pitch threads21
Range of diametral pitch threads8 - 44
Number of modular pitch threads18
Range of modular pitch threads0.3 - 3.5
Max Tool Size1" x 1"
Compound slide travel5-2/5"
Cross slide travel10-2/3"
Tailstock spindle travel6-1/2"
Taper in tailstock spindleMT5
Follow rest capacity3/8" - 7-3/4"
Steady rest capacity1/2" - 3-1/2"
Width of bed13-4/7"
Motor10 HP, 230/460V, 3 Ph
Amperage Draw @ 230V 3Ph36
Amperage Draw @ 460V 3Ph18
Prewired230V
Coolant pump motor1/8 HP
Weight (lbs.)5,842
Overall Dimensions (LxWxH)139" x 44" x 68"
