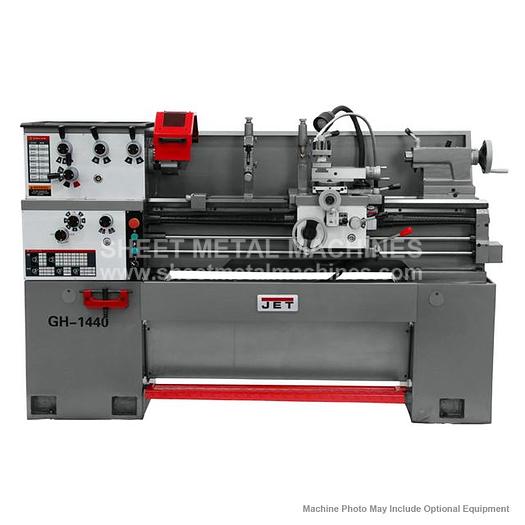

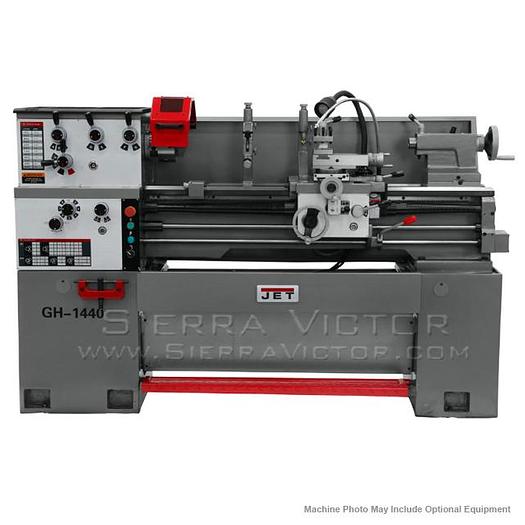

JET GH-1440-3 Geared Head Lathe 322840
JET GH-1440-3 Geared Head Lathe 322840
$11,499
Description
Please note: many products ship straight from manufacturer JET GH-1440-3 14" X 40" Geared Head Lathe 322840 The new JET GH-1440-1 and GH-1440-3 Geared Head engine lathes weigh over one ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 and GH-1440-3 also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked. Splined, not keyed, shafts are utilized D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings Independent leadscrew and feed rod Adjustable gibs are incorporated in the carriage and slideways Safety on/off switch Emergency Stop within easy reach of the Operator Electronic Chuck Key Docking Station Chuck Guard Foot Brake Gearbox provides larger threading and feed capabilities with no gear changes Spindle actuation control is apron mounted Gap bed section provided for larger diameter work Inch-metric dials are standard Compound and cross slide have backlash elimination Tailstock may be offset for turning tapers and includes an inch-metric graduated quill Front removable chip tray Spindle jog button for easy gear engagement and spindle inching Coolant system Full length splash guard
STANDARD EQUIPMENT: 6" 3-Jaw Chuck 8" 4-Jaw Chuck 12" Face Plate Steady & Follow Rest Metric Change Gears Lead Screw Cover LED Work Lamp Micro Carriage Stop Chuck Guard
ITEM: 14" x 40" Geared Head Lathe MANUFACTURER: JET MODEL: GH-1440-3 PART# 322840 OPTIONAL MODELS:
PLEASE CALL US FOR OTHER AVAILABLE CONFIGURATIONS: 386-304-3720
Specifications
| Manufacturer | Jet |
| Model | GH-1440-3 |
| Condition | New |
| Stock Number | 322840 |
| Part# | 322840 |
| Swing Over Bed (in.) | 14 |
| Swing Over Cross Slide (in.) | 8-1/5 |
| Swing Through Gap (in.) | 20 |
| Length of Gap (in.) | 9-3/8 |
| Distance Between Centers (in.) | 40 |
| Spindle Bore (in.) | 1-1/2 |
| Spindle Mount | D1-4 |
| Spindle Taper with Sleeve | MT-5 |
| Number of Spindle Speeds | 12 |
| Range of Spindle Speeds (RPM) | 40-1800 |
| Number of Longitudinal & Cross Feed Rates | 40 |
| Range of Longitudinal Feeds (IPR) | 0.0012 - 0.0294 |
| Range of Cross Feeds (IPR) | 0.0004 - 0.0103 |
| Number of Inch Threads | 40 |
| Range of Inch Threads (in.) | 4-112 |
| Number of Metric Threads | 23 |
| Range of Metric Threads (mm) | 0.45-7.5 |
| Maximum Tool Size (in.) | 5/8 x 5/8 |
| Compound Slide Travel (in.) | 3-1/2 |
| Cross Slide Travel (in.) | 6-3/8 |
| Carriage Travel (in.) | 37-1/2 |
| Tailstock Spindle Travel (in.) | 4-3/4 |
| Taper in Tailstock Spindle | MT-3 |
| Follow Rest Capacity (in.) | 2-5/8 |
| Steady Rest Capacity - (in.) | 3-1/2 |
| Width of Bed (in.) | 10-1/5 |
| Motor (HP) | 3HP, 230V, 3PH |
| Prewired | 230V |
| Overall Dim. w/ Stand (in.) | 74-4/5 x 28 x 46 |
| Weight (lb.) | 2,336 |
