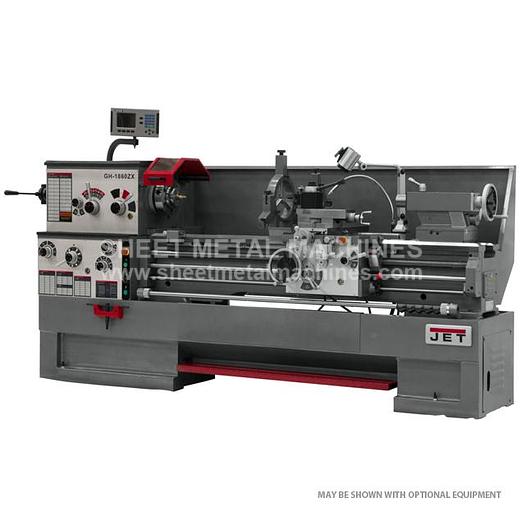

JET GH-1860ZX Geared Head Lathe 321960

JET GH-1860ZX Geared Head Lathe 321960

$22,079 FREE ALORIS Quick Change Intro-Pro Set - 6/30/20

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET GH-1860ZX, 3-1/8" Spindle Bore Geared Head Lathe, 321960 The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty. 3-1/8” bore spindle is supported by two tapered and one ball bearings Chrome molybdenum headstock gears are hardened, ground and shaved Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces T-slotted compound slide featuring four-way tool post One piece cast iron base absorbs vibration allowing heavier cuts High quality ANSI Class 50 wear resistant cast iron bed ways are Removable gap allows large diameter work Five position automatic carriage stop increases productivity Meehanite Castings Siemens Electrics STANDARD ACCESSORIES: 10" 3-jaw scroll chuck with top reversing jaws 12” face plate 5pc. Quick change tool post set Follow rest Large capacity steady rest with ball bearing tips Fully integrated coolant system Full length splash guard and coolant return Large easy to use foot brake Articulating LED work lamp Electronic Chuck Key Holder Fitted top mats to hold tooling Centrally located controls with jog button Threading dial Mounting pads and levelers Live center Tolerance Test Certificate Tool box and adjusting tools E-Stop on Carriage for added safety ITEM: 18" x 60" Large Spindle Bore Lathe MANUFACTURER: JET MODEL: GH-1860ZX PART# 321960 STOCK # INCLUDES 321291 Taper Attachment 321292 Collet Closer 650305 400 Series Quick Change Tool Post Set 660210 23 Piece Turning Tool Kit For ZX Series Lathes AVAILABLE PACKAGES — GH-1860ZX LATHE DRO and Accessory Packages STOCK # INCLUDES 321463 GH-1860ZX With Taper Attachment 321961 GH-1860ZX With Taper Attachment and Collet Closer 321484 GH-1860ZX With ACU-RITE 203 DRO 321504 GH-1860ZX With ACU-RITE 203 DRO With Taper Attachment 321491 GH-1860ZX With ACU-RITE 203 DRO With Collet Closer 321505 GH-1860ZX With ACU-RITE 203 DRO With Taper Attachment and Collet Closer 321590 GH-1860ZX With ACU-RITE 300 DRO 321591 GH-1860ZX With ACU-RITE 300 DRO With Taper Attachment 321592 GH-1860ZX With ACU-RITE 300 DRO With Collet Closer 321593 GH-1860ZX With ACU-RITE 300 DRO With Taper Attachment and Collet Closer 321485 GH-1860ZX With Newall DP700 DRO 321452 GH-1860ZX With Newall DP700 DRO With Taper Attachment 321557 GH-1860ZX With Newall DP700 DRO With Taper Attachment and Collet Closer

Specifications

ManufacturerJet
ModelGH-1860ZX
ConditionNew
Stock Number321960
STOCK#321960
Swing Over Bed (in.)18
Swing Over Cross Slide (in.)11
Swing Through Gap (in.)27-1/2
Length of Gap (in.)12
Distance Between Centers (in.)60
Spindle Bore (in.)3-1/8
Spindle MountD1-8
Spindle Taper (w/ Sleeve)MT-7 (MT-5)
Number of Spindle Speeds12
Range of Spindle Speeds (RPM)25 - 1,800
Number of Longitudinal & Cross Feed Rates46/31
Range of Longitudinal Feeds (in./rev.).0015 - .0900
Range of Cross Feeds (in./rev.).0006 - .0360
Number of Inch Threads61
Range of Inch Threads (TPI)1-5/8 - 72
Number of Metric Threads24
Range of Metric Threads (mm).05 - 20
Maximum Tool Size (in.)1 x 1
Compound Slide Travel (in.)5-1/8
Cross Slide Travel (in.)9
Carriage Travel (in.)55-9/16
Tailstock Spindel Travel (in.)5
Tailstock TaperMT-5
Follow Rest Capacity (in.)1/2 - 3-1/2
Steady Rest Capacity (in.)3/8 - 7-3/4
Width of Bed (in.)13-1/8
Motor7-1/2 HP, 230/460V, 3Ph, Prewired 230V **SURCHARGE APPLIES FOR 460V RE-WIRE
Overall Dim. w/ Stand (in.)115 x 44 x 66
Net Weight (lb.)6,245
