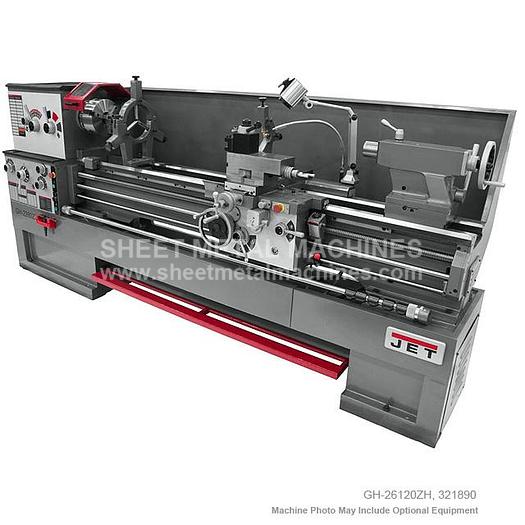

JET GH-26120ZH Geared Head Lathe 321890
JET GH-26120ZH Geared Head Lathe 321890
$36,719
Description
Please note: many products ship straight from manufacturer JET GH-26120ZH, 4-1/8" Spindle Bore Geared Head Lathe, 321890 The JET ZH-Series 4-1/8” spindle bore lathes feature a clutch operated headstock, universal gearbox, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty 4-1/8" Spindle Bore Clutch operated headstock with all headstock gears hardened and ground Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required Meehanite Castings are used for added durability. Bed ways are induction hardened and ground for durability. Full Length Splash Guard Heavy-duty tailstock and quill Rapid power traverse to cross slide and carriage Siemens Electrics
STANDARD EQUIPMENT: Drive Plate 12" 3-Jaw scroll chuck with top reversing jaws Face Plate 2 Steady Rests with Roller Bearings Follow Rest Large capacity steady rest with ball bearing tips 5pc. Quick change tool post set Micro-carriage bed stop Fully Integrated Coolant System LED work lamp Electronic Chuck Key Holder Fitted top mats to hold tooling E-Stop on Carriage for added safety Large easy to use foot brake
ITEM: 26" x 120" Geared Head Engine Lathe MANUFACTURER: JET MODEL: GH-26120ZH PART# 321890
OPTIONAL MODELS:
PLEASE CALL US FOR OTHER AVAILABLE CONFIGURATIONS: 386-304-3720
Specifications
| Manufacturer | Jet |
| Model | GH-26120ZH |
| Condition | New |
| Stock Number | 321890 |
| Part# | 321890 |
| Max. Swing Over Bed (in.) | 26 |
| Max. Swing Over Cross Slide (in.) | 16.5 |
| Swing Through Gap (in.) | 34 |
| Length of Gap (in.) | 8 |
| Distance Between Centers (in.) | 120 |
| Spindle Bore (in.) | 4-1/8 |
| Spindle Mount | D1-8 |
| Spindle Taper | MT-5 |
| Number of Spindle Speeds | 12 |
| Range of Spindle Speeds (RPM) | 36-1,600 |
| Number of Longitudinal & Cross Feeds | 65 |
| Range of Longitudinal Feeds (in./rev.) | .0023 - .0937 |
| Range of Cross Feeds (Inch/rev) | .0040 - .0404 |
| Number of Inch Threads | 48 |
| Range of Inch Threads (in.) | 2-30 |
| Number of Metric Threads | 22 |
| Range of Metric Threads (mm) | 1-14 |
| Maximum Tool Size (in.) | 1-1/4 x 1-1/4 |
| Maximum Compound Slide Travel (in.) | 5-1/2 |
| Cross Slide Travel (in.) | 12-3/32 |
| Carriage Travel (in.) | 108-1/4 |
| Tailstock Spindel Travel (in.) | 6 |
| Taper in Tailstock Spindle | MT-5 |
| Follow Rest Capacity (in.) | 25/32 - 3-15/16 |
| Steady Rest Capacity - (in.) | Small 25/32 - 4-29/32, Large 3-15/16 - 9-7/16 |
| Width of Bed (in.) | 16 |
| Main Motor | 10HP, 230/460V, 3Ph |
| Prewired | 230V |
| Overall Dim. w/ Stand (in.) | 178 x 43 x 57 |
| Net Weight (lb.) | 9,362 |
