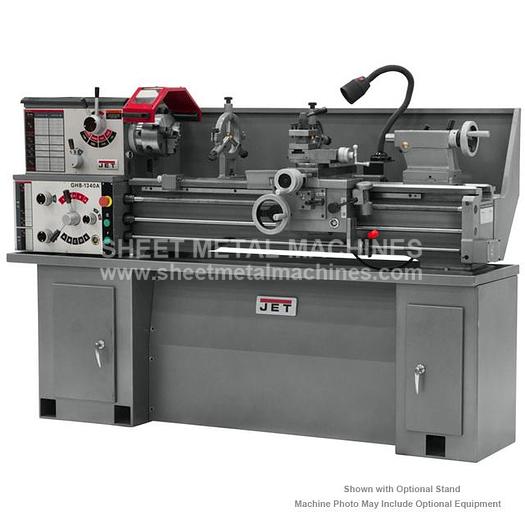

JET GHB-1340A Gear Head Bench Lathe 321357A

JET GHB-1340A Gear Head Bench Lathe 321357A
$9,039 More Options Available - Please Contact
Description
Please note: many products ship straight from manufacturer JET GHB-1340A, 13" x 40" Gear Head Bench Lathe, 321357A JET geared head bench lathes feature an enclosed gearbox for smooth, quiet operation. Precision roller bearings support the hardened and ground spindle resulting in tight tolerances. Each JET Lathe comes loaded with features you’ve come to expect, all backed by the industry leading JET Two Year Warranty. Enclosed gearbox design provides smooth, quiet operation Fast, easy speed changes Hardened and ground gears are featured in the headstock and gearbox D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings Headstock is constantly oiled during operation Gear box gives wide inch threading and feed capabilities with no gear changes V-way bed design is induction hardened and ground Gap bed section provided for larger diameter work Independent leadscrew and feed rod Spindle actuation control is apron mounted Compound and cross slide have backlash adjustment Adjustable gibs are incorporated in the carriage and slideways Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
STANDARD EQUIPMENT: Oil pan included Tolerance test certificate included 6" 3-jaw direct mount chuck with top reversing jaws 8" 4-jaw chuck 12" face plate Steady and follow rest Four-way tool post Metric change gear Splash guard Centers and headstock center sleeve Threading dial Tool box and tools
OPTIONAL MODELS:
PLEASE CALL US FOR OTHER AVAILABLE CONFIGURATIONS: 386-304-3720
Specifications
Manufacturer | Jet |
Model | GHB-1340A |
Condition | New |
Stock Number | 321357A |
Swing Over Bed (in.) | 13 |
Swing Over Cross Slide (in.) | 7-25/32 |
Swing over Gap (in.) | 18-3/4 |
Length of Gap (in.) | 8 |
Distance Between Centers (in.) | 43 |
Spindle Bore (in.) | 1-3/8 |
Spindle Mount | D1-4 |
Spindle Taper (w/ sleeve) | MT-5 (MT-3) |
Number of Spindle Speeds | 8 |
Range of Spindle Speeds (RPM) | 70 - 2000 |
Number of Logitudinal & Cross Feeds | 40 |
Range of Logitudinal Feeds (IPR) | 0.0018 - 0.0374 |
Range of Cross Feeds (IPR.) | 0.0006 - 0.0130 |
Number of Inch Threads | 38 |
Range of Inch Threads (T.P.I.) | 3-1/2 - 80 |
Number of Metric Threads | 23 |
Range of Metric Threads (mm) | 0.45 - 10 |
Maximum Tool Size (in.) | 5/8 x 5/8 |
Compound Slide Travel (in.) | 2-11/16 |
Cross Slide Travel (in.) | 6-5/16 |
Carriage Travel (in.) | 35 |
Tailstock Spindle Travel (in.) | 3-3/4 |
Tailstock Taper | MT-3 |
Steady Rest Capacity (in.) | 2-3/4 |
Follow Rest Capacity (in.) | 2-3/8 |
Width of Bed (in.) | 7-3/8 |
Motor | 2HP, 230V, 1Ph |
Overall Dimensions (in.) | 79 x 28-1/2 x 30 |
Net Weight (lb.) | 1,154 |
