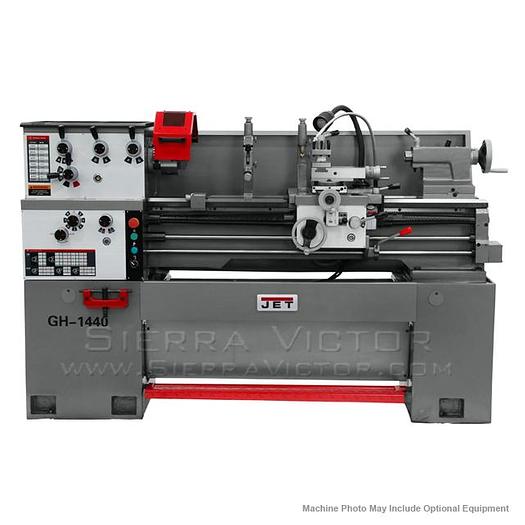

JET GH-1440-1 Geared Head Lathe 322830

JET GH-1440-1 Geared Head Lathe 322830

$11,299

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET GH-1440-1 Geared Head Lathe 322830 The new JET GH-1440-1 and GH-1440-3 Geared Head engine lathes weigh over one ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 and GH-1440-3 also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked. Splined, not keyed, shafts are utilized D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings Independent leadscrew and feed rod Adjustable gibs are incorporated in the carriage and slideways Safety on/off switch Emergency Stop within easy reach of the Operator Electronic Chuck Key Docking Station Chuck Guard Foot Brake Gearbox provides larger threading and feed capabilities with no gear changes Spindle actuation control is apron mounted Gap bed section provided for larger diameter work Inch-metric dials are standard Compound and cross slide have backlash elimination Tailstock may be offset for turning tapers and includes an inch-metric graduated quill Front removable chip tray Spindle jog button for easy gear engagement and spindle inching Coolant system Full length splash guard STANDARD EQUIPMENT: 6" 3-Jaw Chuck 8" 4-Jaw Chuck 12" Face Plate Steady & Follow Rest Metric Change Gears Lead Screw Cover LED Work Lamp Micro Carriage Stop Chuck Guard ITEM: GH-1440-1 Geared Head Lathe 322830 MANUFACTURER: JET MODEL: GH-1440-1 PART# 322830 AVAILABLE PACKAGES — GH-1440-1 Lathe Packages STOCK # INCLUDES 323371 GH-1440-1 WITH TAPER ATTACHMENT 323372 GH-1440-1 With Collet Closer 323373 GH-1440-1 With Taper Attachment and Collet Closer 323378 GH-1440-1 WITH ACU-RITE DRO 102 323380 GH-1440-1 With ACU-RITE DRO 102 With Taper Attachment 323379 GH-1440-1 With ACU-RITE DRO 102 & Collet Closer 323381 GH-1440-1 With ACU-RITE DRO 102 With Taper Attachment andCollet Closer 323374 GH-1440-1 With ACU-RITE 203 DRO 323375 GH-1440-1 With ACU-RITE 203 DRO With Taper Attachment 323376 GH-1440-1 With ACU-RITE 203 DRO With Collet Closer 323377 GH-1440-1 With ACU-RITE 203 DRO With Taper Attachment and Collet Closer 323406 GH-1440-3 With ACU-RITE DRO 102 With Collet Closer 323410 GH-1440-3 With ACU-RITE DRO 102 With Taper Attachment and Collet Closer 323403 GH-1440-3 With ACU-RITE 203 DRO 323405 GH-1440-3 With ACU-RITE 203 DRO With Taper Attachment 323404 GH-1440-3 With ACU-RITE 203 DRO With Collet Closer 323408 GH-1440-3 With ACU-RITE 203 DRO With Taper Attachment and Collet Closer 323382 GH-1440-1 With Newall DP700 DRO 323384 GH-1440-1 With Newall DP700 DRO With Taper Attachment 323383 GH-1440-1 With Newall DP700 DRO With Collet Closer 323385 GH-1440-1 With Newall DP700 DRO With Taper Attachment and Collet Closer

Specifications

ManufacturerJet
ModelGH-1440-1
ConditionNew
Stock Number322830
Part#322830
Swing Over Bed (in.)14
Swing Over Cross Slide (in.)8-1/5
Swing Through Gap (in.)20
Length of Gap (in.)9-3/8
Distance Between Centers (in.)40
Spindle Bore (in.)1-1/2
Spindle MountD1-4
Spindle Taper with SleeveMT-5
Number of Spindle Speeds12
Range of Spindle Speeds (RPM)40-1800
Number of Longitudinal & Cross Feed Rates40
Range of Longitudinal Feeds (IPR)0.0012 - 0.0294
Range of Cross Feeds (IPR)0.0004 - 0.0103
Number of Inch Threads40
Range of Inch Threads (in.)4-112
Number of Metric Threads23
Range of Metric Threads (mm)0.45-7.5
Maximum Tool Size (in.)5/8 x 5/8
Compound Slide Travel (in.)3-1/2
Cross Slide Travel (in.)6-3/8
Carriage Travel (in.)37-1/2
Tailstock Spindle Travel (in.)4-3/4
Taper in Tailstock SpindleMT-3
Follow Rest Capacity (in.)2-5/8
Steady Rest Capacity - (in.)3-1/2
Width of Bed (in.)10-1/5
Motor (HP)3HP, 230V, 1PH
Prewired230V
Overall Dim. w/ Stand (in.)74-4/5 x 28 x 46
Weight (lb.)2,336
