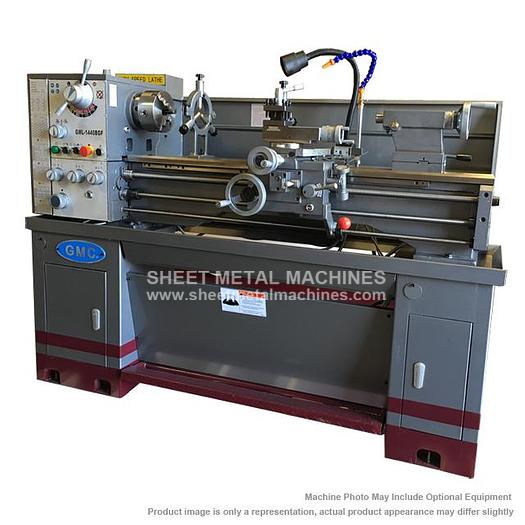

GMC Machine Tools High Speed Precision Engine Lathe GML-1440BGF-3
GMC Machine Tools High Speed Precision Engine Lathe GML-1440BGF-3
$8,950 FREE SHIPPING!
Description
Please note: many products ship straight from manufacturer GMC High Speed Precision Engine Lathe GML-1440BGF-3 ISO 9001 certified
With free SINO DRO installed
With free Taper Attachment installed
Full Geared-head precision Engine Lathe with foot brake
Quick-change gearbox with fast and easy threading set up
Heavy Duty main motor 3HP, 220V, 1 phase
Spindle bore 1-1/2”
Heavy Duty spindle D1-4
Heavy Duty guideway width 7-1/2”
8 spindle speeds from 70-2,000 rpm, speeds: 70/115/190/300/460/755/1255/2000 rpm
56 kinds of inch threads, and 44 kinds of metric threads
Spindle is balanced, hardened and precision ground
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
STANDARD ITEMS: Free SINO DRO installed
Free Taper Attachment installed
6” 3-jaw chuck with set reversible jaws
8” 4-jaw chuck with set reversible jaws
10” Face plate
3-3/4” large steady rest
2” follow rest
Foot brake
Coolant system
Halogen work light
4-way tools post
Full length splash guard
(2) dead centers and (1) reducing sleeve
Thread chasing dial
Tool box
OPTIONAL ITEMS - CALL FOR PRICE: PART#DPD410 10” Drive Plate PART#MCS1440 Micro Carriage Stop PART#NW840 DRO for 1440BGF, NEWALL, 2 axis, free install PART#SINO DRO for GML-1440BGF, 2 axis, free install PART#5C 5-C Hand lever type collet closer,”JFK” USA,free install PART#900-0014 33 pc 5C collet set, from 1/16 to 1-1/16” by 32ndth PART#TA-GML1440 Taper turning attachment , free installation PART#900-0051-200 6pc ALORIS type quick change toolpost (wedge) PART#900-0050-03 Live Center MT3 PART#700-0102 1/2” drill chuck PART#700-0153 1/2” drill chuck arbor PART#Lathe package #1 includes: 5pc indexable carbide turning set# 2003-0003, 1/2 drill chuck # 700-0102, Chuck arbor # 700-0153 and 29pc Titanium drill bit set #5000-0001T
Specifications
| Manufacturer | GMC Machine Tools |
| Model | GML-1440BGF-3 |
| Condition | New |
| Stock Number | GML-1440BGF-3 |
| Max. swing over bed | 14" |
| Max. length of workpiece Max. length of cutting | 40”/34” |
| Max. swing over cross slide | 8-1/4” |
| Max. Swing in gap | 19-1/4” |
| Width of Bed | 7-1/2” |
| Effective length in gap to spindle | 6-1/2" |
| Effective length in gap to chuck jaws | 3-5/8" |
| Spindle bore | 1-1/2” , D1-4 |
| Taper of spindle center | M.T.# 5 (MT5/MT3) |
| Spindle speeds | 70-2,000 rpm / 8 steps |
| Longitudinal feeds | 0.00168-0.11750 IPR, 24 kinds |
| Cross feeds | 0.00046-0.03231 IPR, 24 kinds |
| Inch threads | 4 - 112 TPI, 56 kinds |
| Metric threads | 0.1 - 7.0 mm , 44 kinds |
| Diametral Pitch threads | 16 - 112 DP, 32 kinds |
| Module threads | 0.1 - 1.75mm, 34 kinds |
| Spindle speeds, 8 steps | 70/115/190/300/460/755/1255/2000 rpm |
| Max. travel of top slide | 4-1/4” |
| Max. travel of cross slide | 7-1/4” |
| Diameter of tailstock quill | 1-1/2” |
| Max. travel of tailstock quill | 4” |
| Taper of tailstock quill center | M.T. # 3 |
| Main motor | 3 HP, 220V, 3 phase |
| Coolant pump motor | 1/16 HP, 220V, 1 phase |
| Net weight, approx. | 1,730 lbs |
| Overall dimensions, LxWxH | 70” x 35” x 59” |
